Eyelet machines and systems from Walter Winter Fastening Technology
For professional eyelet processing, we offer a selection of robust and reliable machines, including hand eyelet machines, pneumatic eyelet machines, and electric eyelet machines in various designs. These devices are optimally suited for processing different types of eyelets.
With state-of-the-art technology and a particularly stable construction, our eyelet machines ensure maximum reliability and first-class quality. This guarantees a long service life and enables consistently economical production – of course made in Germany by Walter Winter Verbindungstechnik.
The operating principle of our eyelet processing machines is consistently efficient: the eyelets are first filled into a practical collection funnel on the machine. Then the insertion process begins. The eyelet punch then guides the eyelet through the material to be punched using a precise tool stamp and secures it safely and permanently in a single operation. Once the eyelet has been inserted, the machine is immediately ready for the next processing step.
If you have any special requirements, please contact us – together we will find the perfect solution.
Our overview of eyelet machines
Discover our comprehensive range of eyelet machines – the right machine for every application.

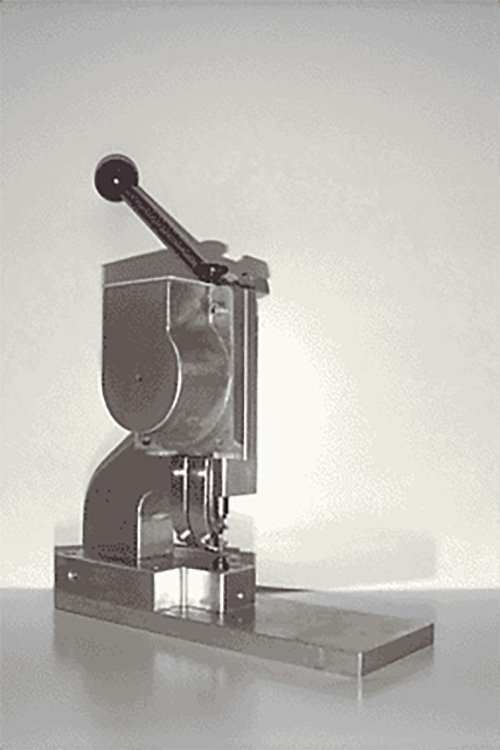

Machine type Mini 01-01
The manual eyeletting machine manually punches and eyelets at the same time. The eyelets are automatically fed from the magazine. Suitable for eyelets with an inner diameter of 3.5 – 6.0 mm. The machine body is made of aluminum, making it very light.
Machine type Mini 01-02
The double manual eyeletting machine manually punches and eyelets both eyelets at the same time. The eyelets are automatically fed from the magazine. Suitable for eyelets 24, 25 (inner diameter 4.0 mm) and 8E, 8E 4lang (inner diameter 5.5 mm).

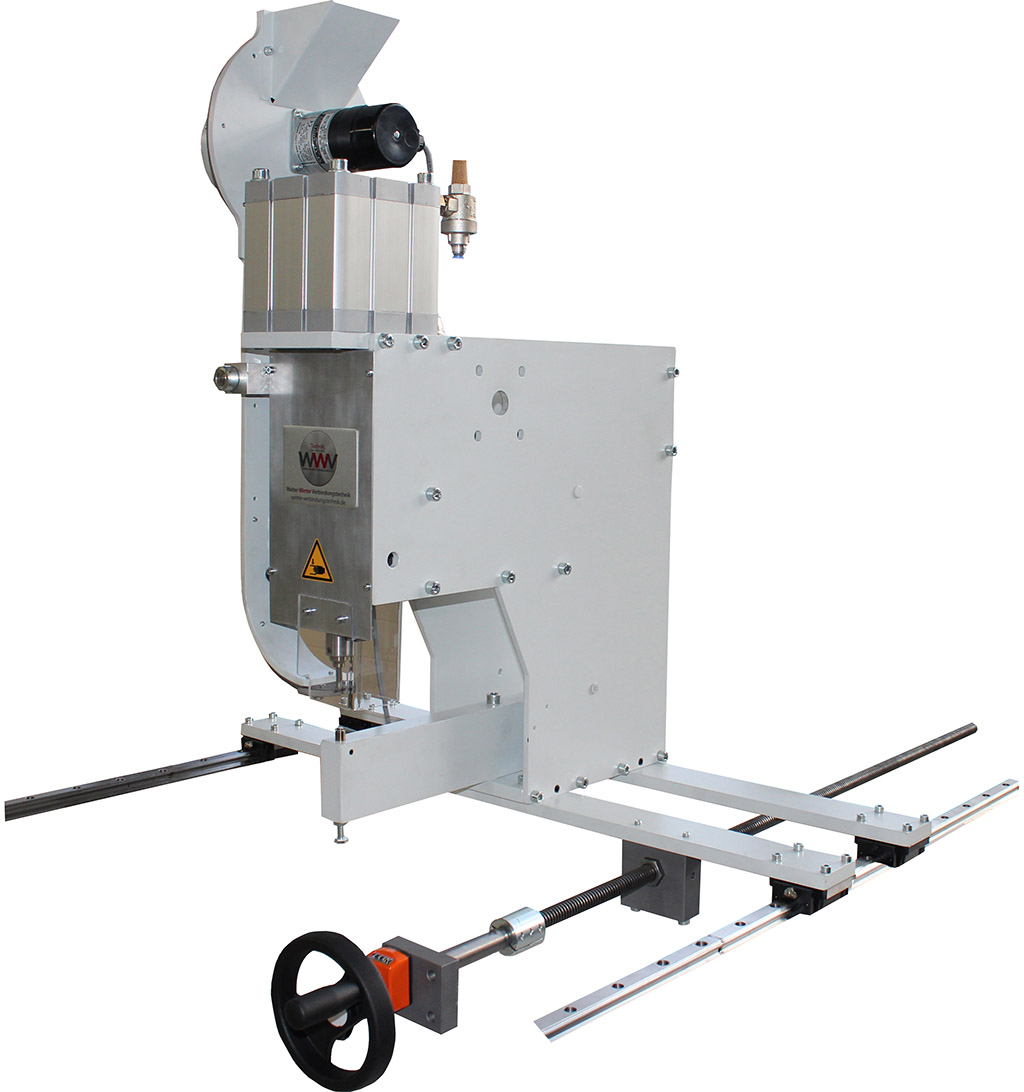

Machine type 032-01
Pneumatic oiling machine with quick pressure adjustment. Mounted on a plate with linear guides + linear carriage and adjustable via spindle. For automatic insertion of self-piercing eyelets. The eyelets are automatically…

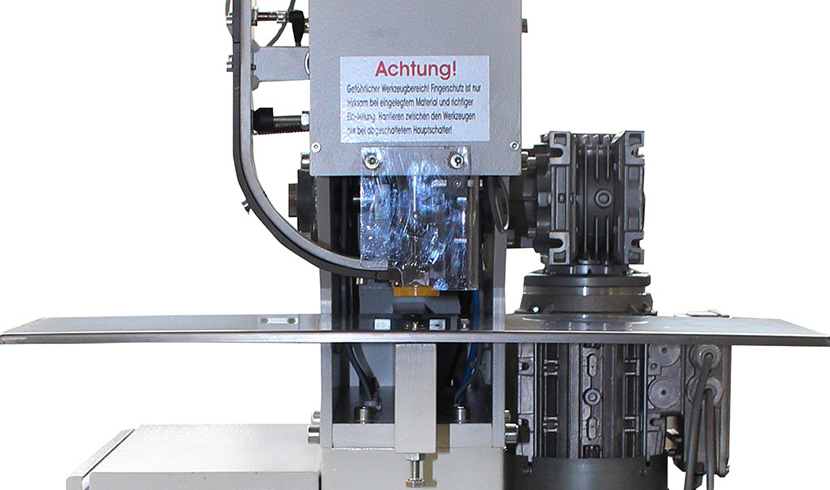

Machine type 033-01
Electric eyeletting machine for the automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum. The pressure of the eyelets is adjusted via an adjusting screw on the…

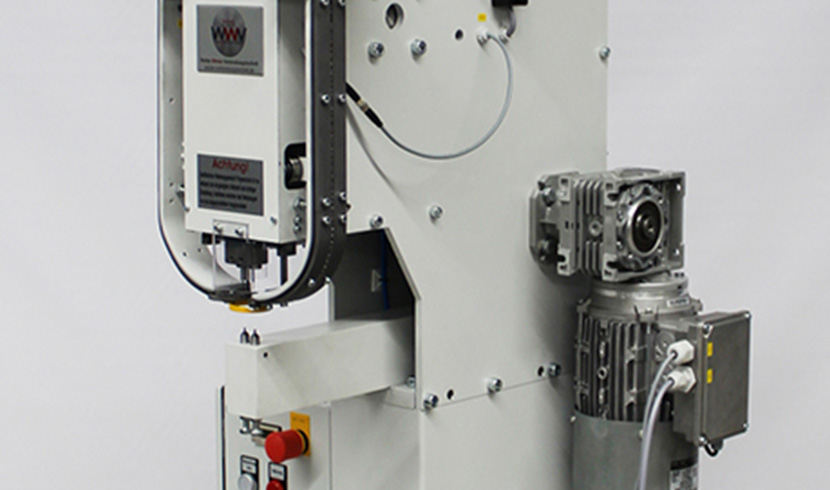

Machine type 033-02
Electric double eyeletting machine with fixed hole spacing for the automatic insertion of eyelets into pre-punched material. The eyelets are automatically fed and pressed in via a driven sorting drum on the left and right.
Machine type 033-10 (2)
Electric eyeletting machine with pre-punching device and washer feed for automatic insertion of eyelets and washers into fabric binders or fabric. The material is pre-punched by the pre-punching device. The disks are automatically…
Machine type 033-20
Electric eyeletting machine with washer feed for pre-punched material for the automatic insertion of eyelets and washers into fabric binders or fabric. The washers are fed automatically and positioned by a steel strip pusher.
Machine type 033-30D
Electric double eyeletting machine for pre-punched material and sliding block for automatic insertion of eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum on the left and right.
Machine type 033-50
Electric oiling machine in special design with quick pressure adjustment. Mounted on a plate. For automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a vibration conveyor.
Machine type 035-02
Electric 2-fold eyeletting machine for the automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum on the left and right. The setting of both…
Machine type 035-40-300
Electric 4-fold eyeletting machine for the automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum on the left, right and front. The insertion of all…
Machine type 060-16 (2)
Electric riveting machine in special design for rivet pins for automatic insertion into pre-punched material. The rivet pins are fed automatically via a vibration conveyor and are positioned and held in place by a pusher.
Machine type 1007
Freely programmable 4-fold automatic belt riveter for the automatic insertion of four different self-piercing rivets in a single operation. The rivets are automatically fed and pressed in via a vibration conveyor.
Machine type 090-01 (4)
Electric riveting machine with bottom part feed, bottom punch movement and hold-down device for the automatic insertion of 2-part hollow rivets of various lengths into pre-punched material. The rivet bottoms are automatically…
Machine type 090-01 (3)
Electric riveting machine with bottom part feed and bottom punch movement for the automatic insertion of 2-part hollow rivets of various lengths into pre-punched material. The rivet bottoms are fed in automatically and are…
Machine type 090-01 (2)
Electric press stud machine with bottom part feed for automatic insertion. The press stud bases are fed in automatically and positioned and held in place by a steel strip pusher. The press studs are…
Machine type 090-01
Electric riveting machine with bottom part feed for automatic insertion of 2-part hollow rivets into pre-punched material. The rivet bottoms are fed automatically and positioned and held in place by a steel strip pusher.
Machine type 080-10
Electric 3-fold riveting machine for the automatic insertion of rivets in ring binder mechanisms. The rivets are automatically fed and pressed in via a driven sorting drum on the left, right and front.
Machine type 080-05
Electric 2-fold riveting machine for the automatic insertion of rivets into pre-punched material. The rivets are automatically fed and pressed in via a driven sorting drum on the left and right.
Machine type 065-20-2
Freely programmable 2-fold automatic belt riveter for the automatic insertion of two different self-piercing rivets in a single operation. The rivets are automatically fed and pressed in via a vibration conveyor.
Machine type 060-16-200V
Electric riveting machine in reinforced design for the automatic insertion of drilled rivets up to 55 mm in length into pre-punched material. The rivets are automatically fed and pressed in via a vibration conveyor.
Machine type 065-20
Freely programmable automatic belt riveter for the automatic insertion of self-piercing rivets. The rivets are automatically fed and pressed in via a vibration conveyor. Equipped with a quick-change device for the…
Machine type 060-16-420
Electric riveting machine with horn anvil for the automatic insertion of rivets into pre-punched material. The rivets are automatically fed and pressed in via a driven sorting drum. The pressure can be adjusted depending on the material thickness.
Machine type 060-16
Electric riveting machine for the automatic insertion of self-piercing rivets. The rivets are automatically fed and pressed in via a driven sorting drum. The pressure of the rivets is adjusted via a…
Do you have any questions or are you looking for the perfect machine for your requirements? Let’s work together to find the ideal solution – we look forward to hearing from you!
