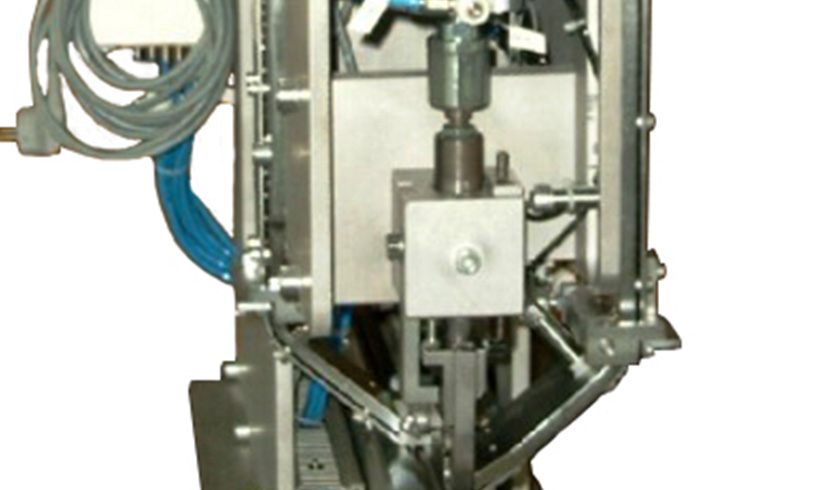

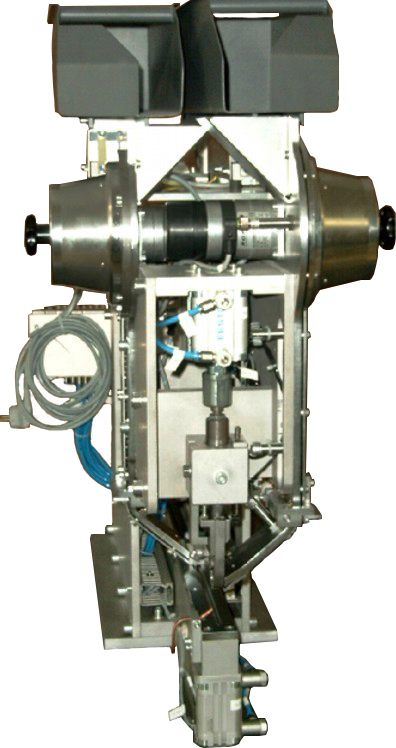

Machine type 090-20
Pneumatic push button machine
Pneumatic push button machine with ball part feed for automatic insertion. The ball parts are fed automatically and positioned by a steel strip pusher. The snap fastener tops are also fed automatically and inserted together with the ball parts. The pressure can be adjusted depending on the material thickness. Electronic snap fastener top and ball part detection for level control in the feed rail. A bunker system can hold up to 60,000 parts, which are then automatically fed into the sorting drums. The snap fastener machine is installed in an industrial production line
Technical specifications
- Valve island with PLC control
- Sorting drum drive: Electric with minimum and maximum control
- Ball parts feed: Pneumatic
- Performance: 60 cycles/minute
- Drive: Compact cylinder
- Sorting drive: Small gear motor
- Weight: approx. 50 kg
- Space requirement: 350 x 950 x 750 mm
- Air pressure: approx. 6 bar
- Projection: 200 mm free overhang
Examples of use
- Medical technology
- Automotive industry
- Textile industry
- Clothing industry
- Packaging industry
- Folder production
- etc.
Usage Videos
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationPress stud machine type 090-20

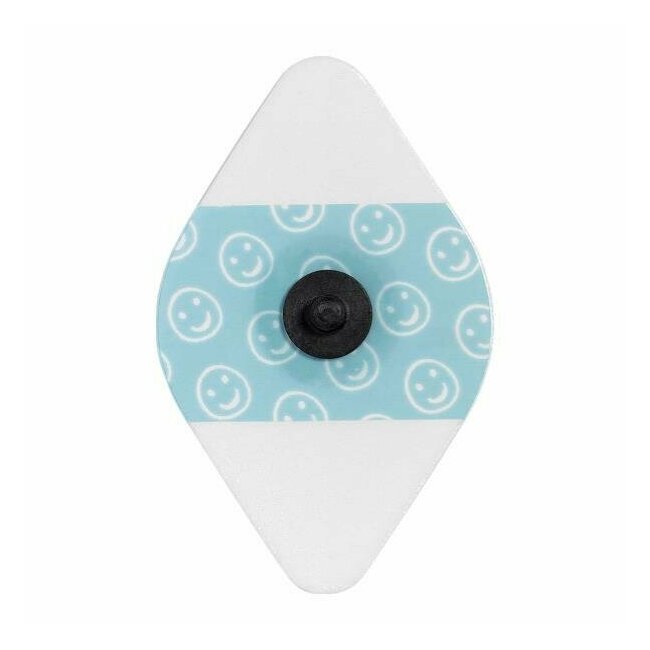

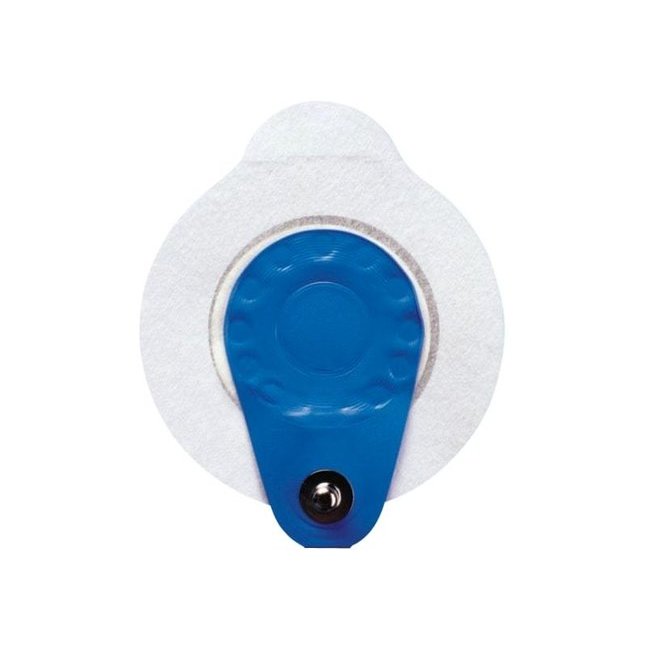

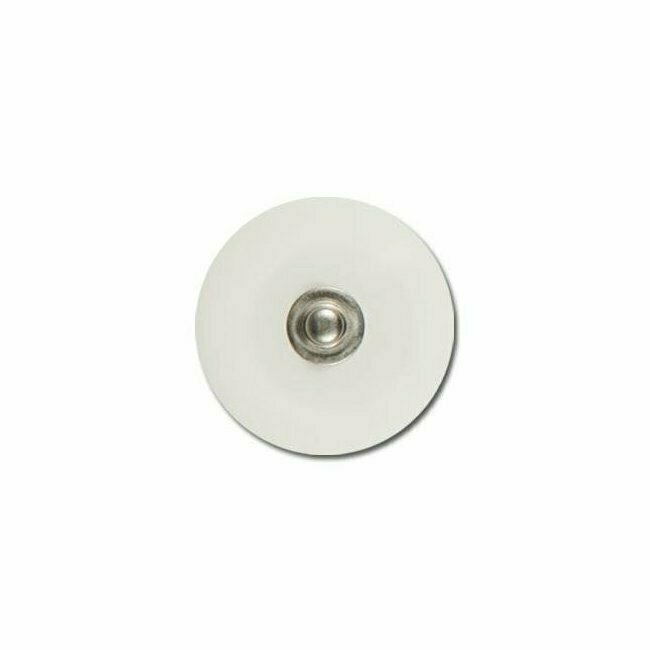

Sample images Medical technology
More special machines
Machine type 035-02
Electric double eyeletting machine for stainless steel eyelets (V2a) in extra heavy design with fixed hole spacing and with hydraulic repressing unit for automatic insertion of eyelets into pre-punched material. The eyelets are automatically…
Machine type 060-16-600
Electric riveting machine with bottom punch movement for the automatic insertion of solid aluminum rivets into pre-punched material. The rivets are fed automatically via a driven sorting drum and inserted with a riveting tool.

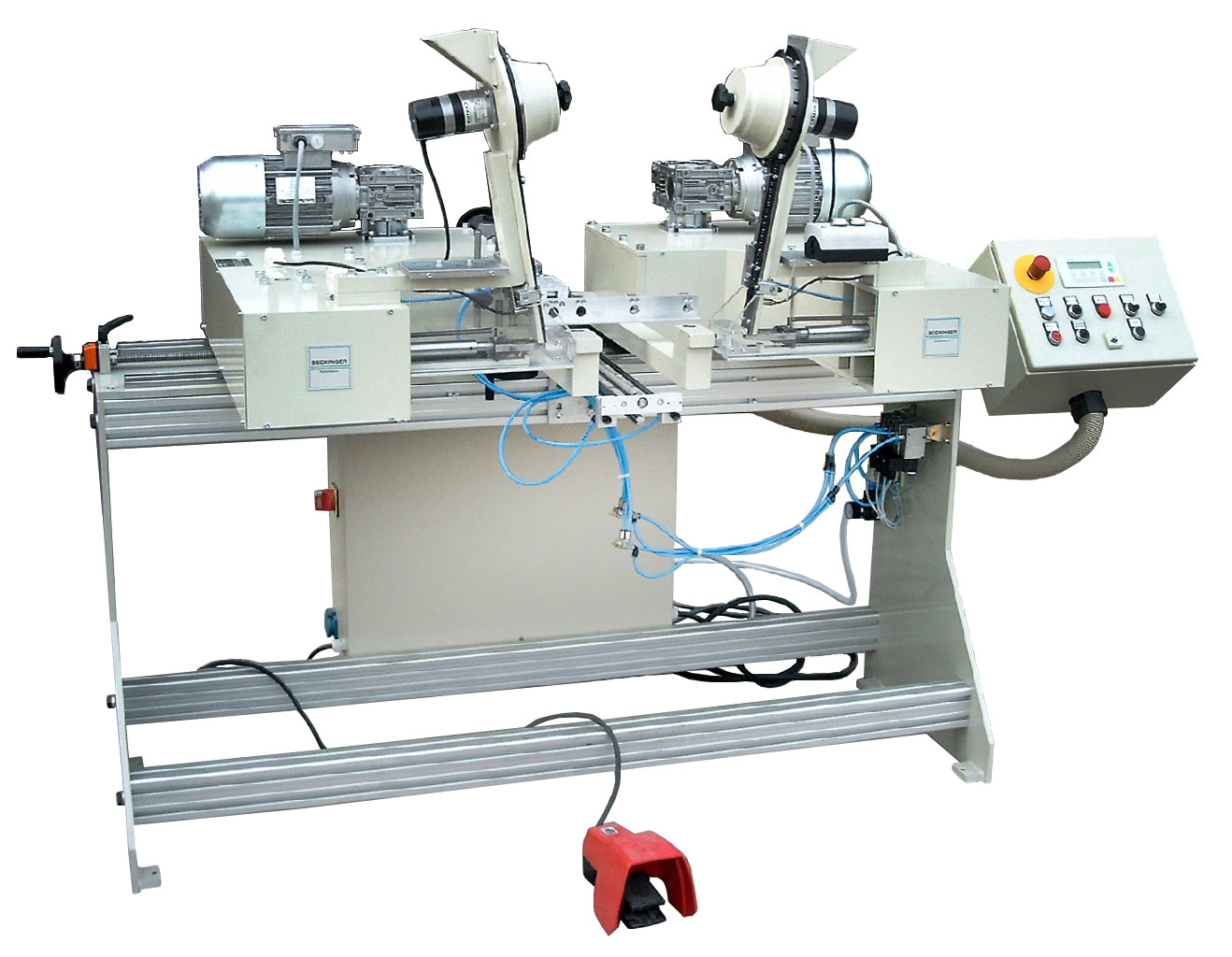

Machine type 080-30
Electric horizontal double riveting machine for plastic carrier belts on detergent containers for automatic insertion of self-piercing rivets. The rivets are automatically inserted via a driven sorting drum on the left and right…
Machine type 090-20
Pneumatic press stud machine with ball part feed for automatic insertion. The ball parts are fed automatically and positioned by a steel strip pusher. The upper parts of the press studs are also automatically…

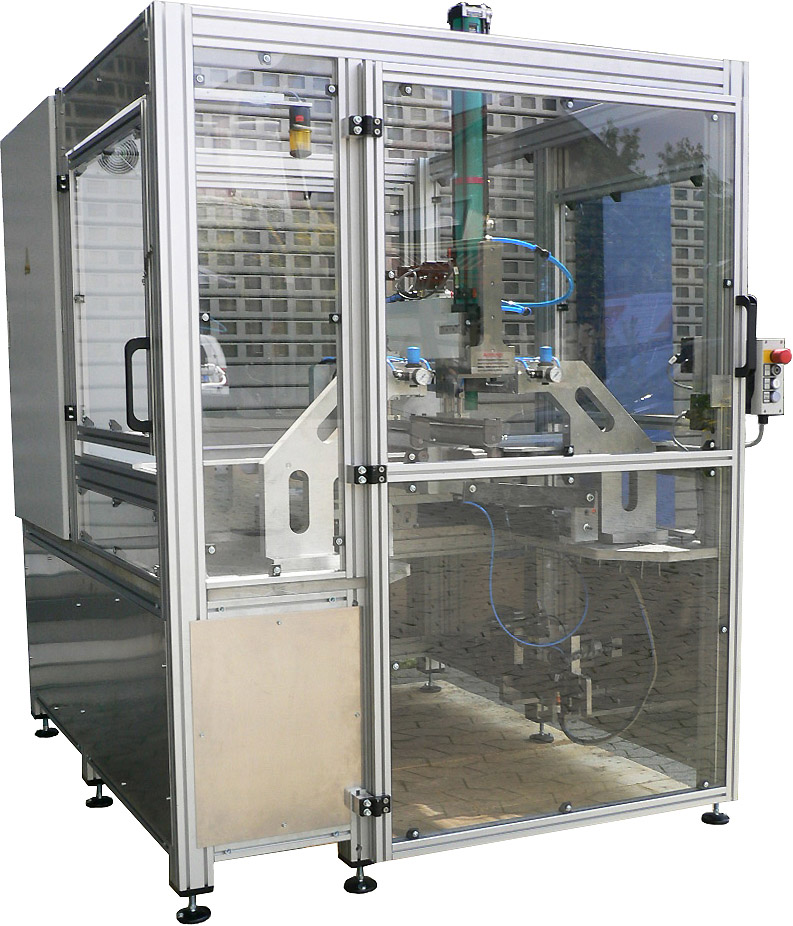

Machine type 1002
Hydro-pneumatic punching press for round and oval holes in coils or endless strips. The endless strips are automatically calibrated before punching. The coil strips are guided through the system. Programmable punching position.
Machine type 1005
Electro-pneumatic double-setting machine for floor mat fasteners for automatic insertion into textile mats. The upper and lower plastic parts are each fed and pressed in automatically via a vibratory conveyor and conveyor belt.
Machine type 035-02
Electric double eyeletting machine for stainless steel eyelets (V2a) in extra heavy design with fixed hole spacing and with hydraulic repressing unit for automatic insertion of eyelets into pre-punched material. The eyelets are automatically…
Machine type 060-16-600
Electric riveting machine with bottom punch movement for the automatic insertion of solid aluminum rivets into pre-punched material. The rivets are fed automatically via a driven sorting drum and inserted with a riveting tool.
Machine type 080-30
Electric horizontal double riveting machine for plastic carrier belts on detergent containers for automatic insertion of self-piercing rivets. The rivets are automatically inserted via a driven sorting drum on the left and right…
Machine type 090-20
Pneumatic press stud machine with ball part feed for automatic insertion. The ball parts are fed automatically and positioned by a steel strip pusher. The upper parts of the press studs are also automatically…
Machine type 1002
Hydro-pneumatic punching press for round and oval holes in coils or endless strips. The endless strips are automatically calibrated before punching. The coil strips are guided through the system. Programmable punching position.
Machine type 1005
Electro-pneumatic double-setting machine for floor mat fasteners for automatic insertion into textile mats. The upper and lower plastic parts are each fed and pressed in automatically via a vibratory conveyor and conveyor belt.

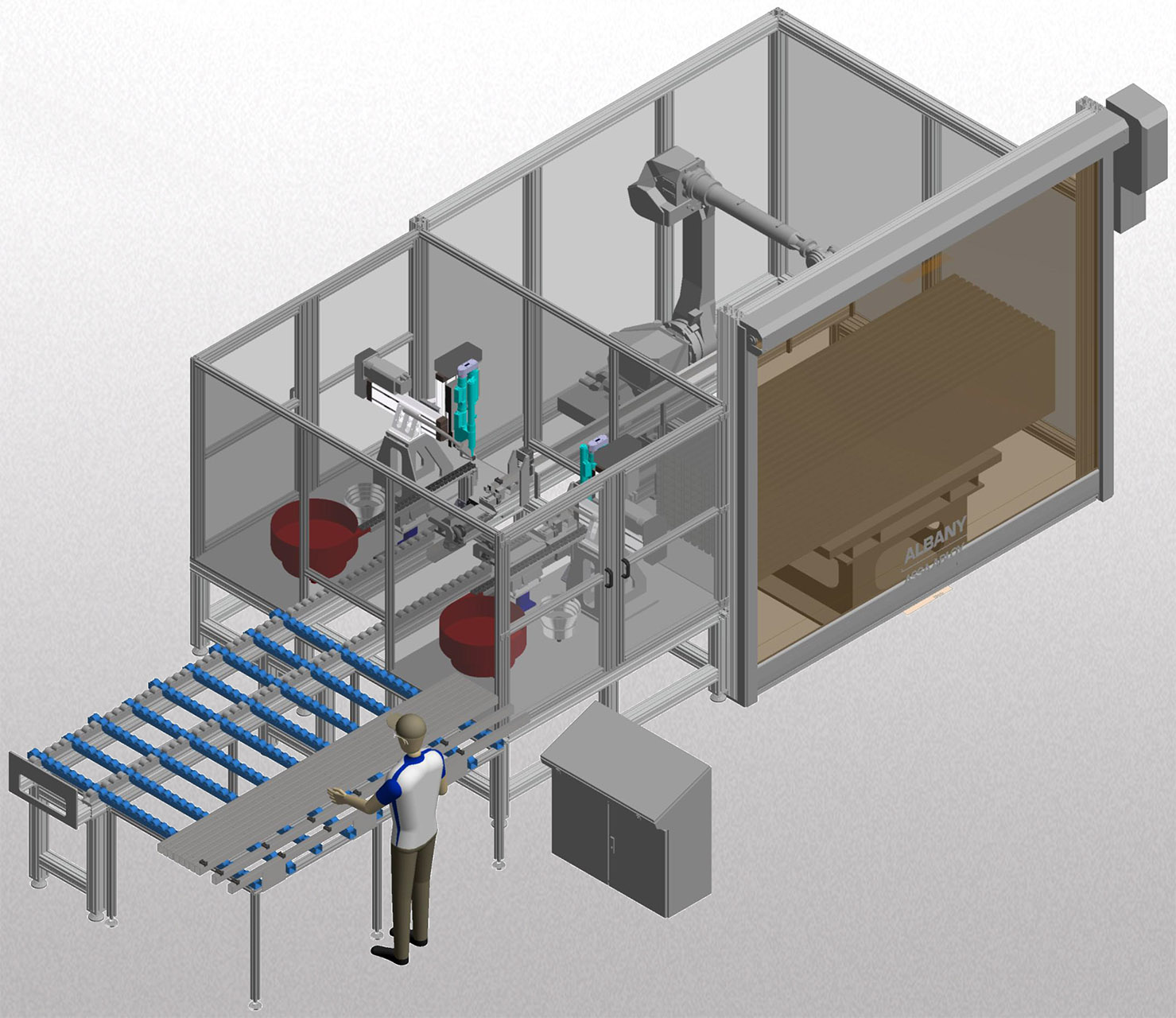

Machine type 1011
Assembly system for plastic clamp holders in fence posts for automatic processing. The plastic clamp holders are fed automatically via a vibratory conveyor with linear system and placed on the fence posts.

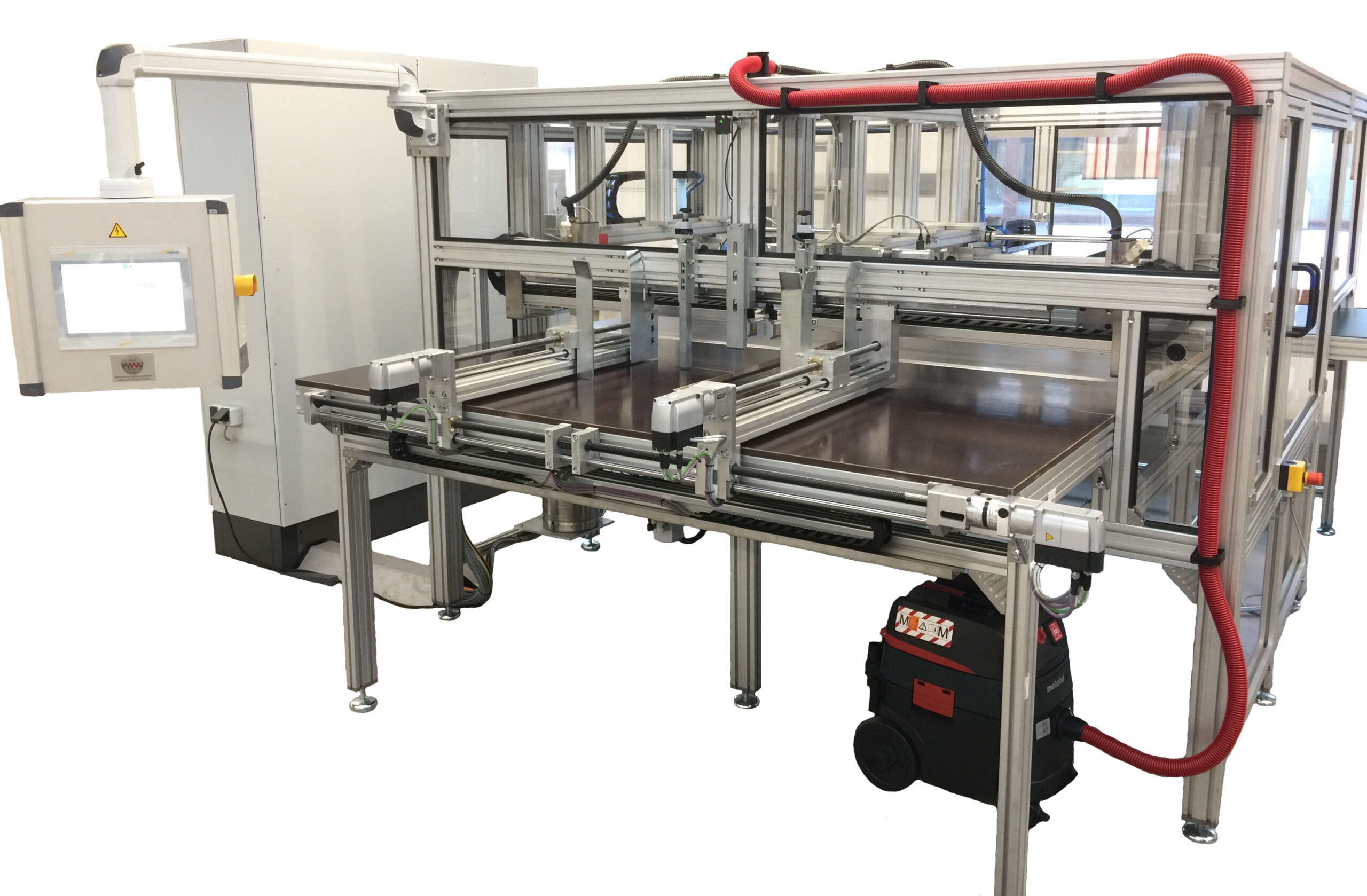

Machine type 1012
