Machine type 1011
Assembly system for plastic clamp holders in fence posts
Assembly system for plastic clamp holders in fence posts for automatic processing. The plastic clamp holders are automatically fed via a vibratory conveyor with a linear system and placed on the fence posts. The metal blind rivet nuts are then automatically spun onto the setting tools via a gripper and pressed together. The setting heads can be continuously adjusted on a linear system to a distance of 40–500 mm in the longitudinal direction and 0–20 mm in the transverse direction. The finished fence posts are deposited by a robot. With protective enclosure, manual release, and piece counter.
Technical specifications
- Control cabinet with PLC control and control panel
- Sorting drum drive: Electric with minimum and maximum control
- Capacity: 480 cycles/hour
- Drive: Electro-pneumatic
- Sorting drive: Vibration conveyor
- Working height: approx. 1000 mm
- Weight: N/A
- Space requirement: 2800 x 6800 x 2300 mm
- Air pressure: approx. 6-8 bar
- Hole spacing: 40 – 500 mm, infinitely variable
Anwendungsbeispiele
- Fence, gate, and security systems
- Wire industry
- Metal processing
- etc.

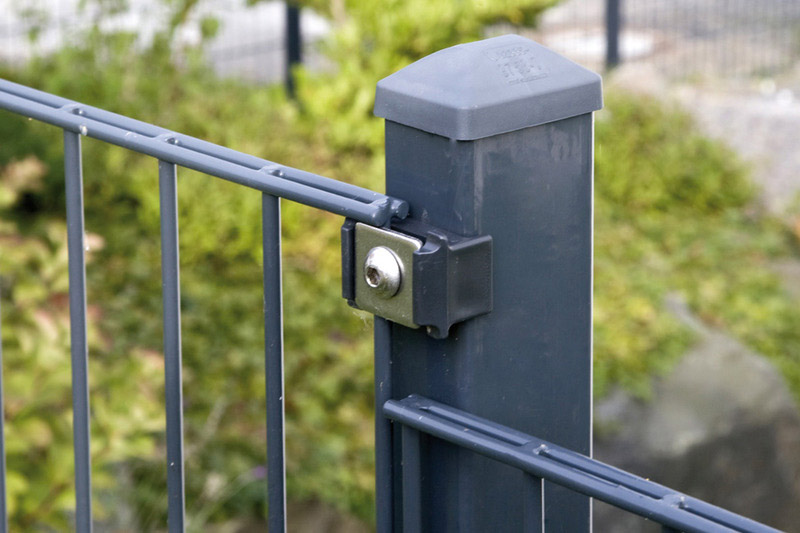

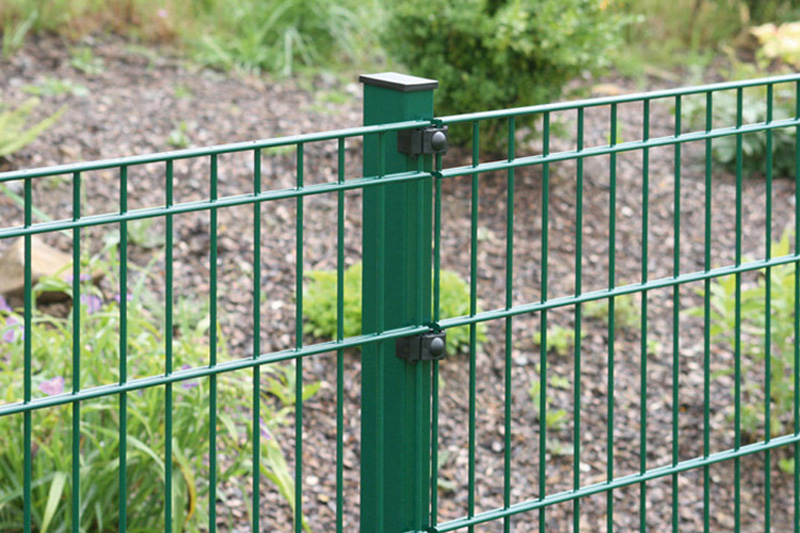

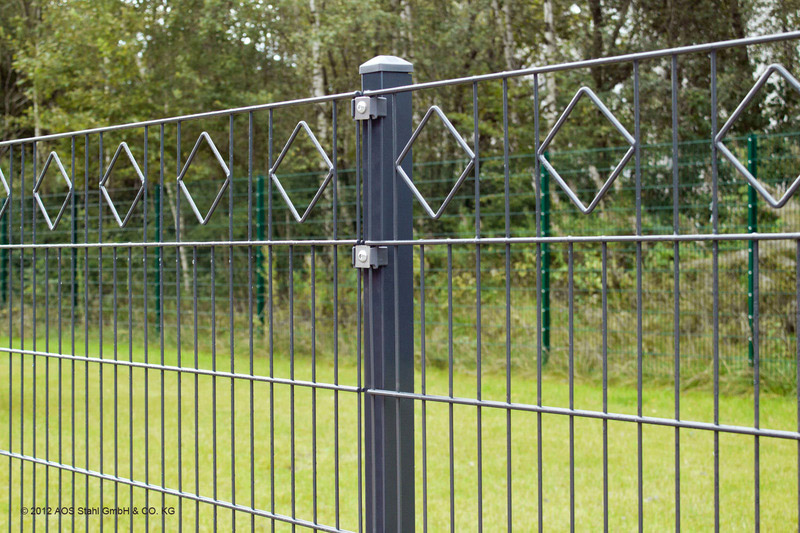

Sample images of fence posts
