Machine type 1002
Hydro-pneumatic punching press
Hydro-pneumatic punching press for round and oval holes in strips as coils or endless strips. The continuous strips are automatically calibrated before punching. The coil strips are fed through the system. Programmable punching position. By calibrating the continuous strips beforehand, the holes are evenly distributed across the strip in the event of length deviations. With protective housing, control buttons, and piece counter.
Technical specifications
- Control cabinet with PLC control and external operation
- Output: 120 cycles/minute
- Drive: Hydro-pneumatic
- Working height: approx. 1000 mm
- Weight: approx. 850 kg
- Space requirement: 1800 x 1500 x 2000 mm
- Air pressure: approx. 6-8 bar
- Reach: 400 mm free overhang
- Pressing force: 3000 N
- Material thickness: up to 10 mm
- Hole diameter: 2 – 20 mm
Examples of use
- Paper and printing industry
- Textile industry
- Packaging industry
- Logistics
- etc.
Usage videos
Hydro-pneumatic automatic punching machine type 1002

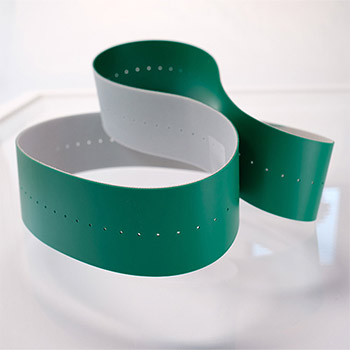

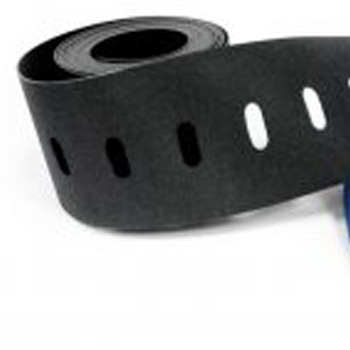

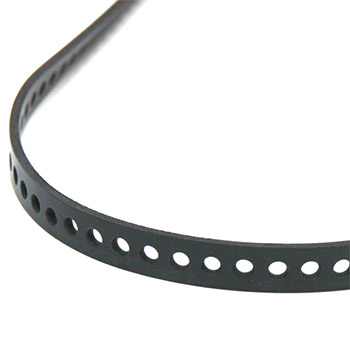

Sample images of conveyor belts
