Machine type 060-16-600
Electric riveting machine with lower punch movement
Electric riveting machine with lower punch movement for automatic insertion of solid aluminum rivets into pre-punched material. The rivets are automatically fed via a driven sorting drum and driven through the material using a riveting tool via a cam eccentric. The lower cam eccentric actuates the pressure lever with the lower tool and presses the rivet. The pressure setting of the rivets is adjusted via the lower tool. The riveting machine is installed in an industrial plant.
Technical specifications
- Control cabinet with PLC control
- Sorting drum drive: Electric in cycle mode and rivet drop detection
- Performance: 100 cycles/minute
- Drive: Geared brake motor
- Sorting drive: Small gear motor
- Weight: approx. 200 kg
- Space requirement: 1200 x 800 x 950 mm
- Projection: 600 mm free overhang
Examples of use
- Automotive industry
- Luggage manufacturing
- Aircraft construction
- Light metal construction
- Switch cabinets
- etc.
More special machines
Machine type 1012
Magnetic gluing station for luxury packaging for inserting magnetic or steel disks into cardboard. The cardboard is stacked in an insertion device and automatically removed. Two blind holes are milled simultaneously, the chips are…
Machine type 1011
Assembly system for plastic clamp holders in fence posts for automatic processing. The plastic clamp holders are fed automatically via a vibratory conveyor with linear system and placed on the fence posts.
Machine type 1005
Electro-pneumatic double-setting machine for floor mat fasteners for automatic insertion into textile mats. The upper and lower plastic parts are each fed and pressed in automatically via a vibratory conveyor and conveyor belt.
Machine type 1002
Hydro-pneumatic punching press for round and oval holes in coils or endless strips. The endless strips are automatically calibrated before punching. The coil strips are guided through the system. Programmable punching position.
Machine type 090-20
Pneumatic press stud machine with ball part feed for automatic insertion. The ball parts are fed automatically and positioned by a steel strip pusher. The upper parts of the press studs are also automatically…
Machine type 080-30
Electric horizontal double riveting machine for plastic carrier belts on detergent containers for automatic insertion of self-piercing rivets. The rivets are automatically inserted via a driven sorting drum on the left and right…
Machine type 1012
Magnetic gluing station for luxury packaging for inserting magnetic or steel disks into cardboard. The cardboard is stacked in an insertion device and automatically removed. Two blind holes are milled simultaneously, the chips are…
Machine type 1011
Assembly system for plastic clamp holders in fence posts for automatic processing. The plastic clamp holders are fed automatically via a vibratory conveyor with linear system and placed on the fence posts.
Machine type 1005
Electro-pneumatic double-setting machine for floor mat fasteners for automatic insertion into textile mats. The upper and lower plastic parts are each fed and pressed in automatically via a vibratory conveyor and conveyor belt.
Machine type 1002
Hydro-pneumatic punching press for round and oval holes in coils or endless strips. The endless strips are automatically calibrated before punching. The coil strips are guided through the system. Programmable punching position.
Machine type 090-20
Pneumatic press stud machine with ball part feed for automatic insertion. The ball parts are fed automatically and positioned by a steel strip pusher. The upper parts of the press studs are also automatically…
Machine type 080-30
Electric horizontal double riveting machine for plastic carrier belts on detergent containers for automatic insertion of self-piercing rivets. The rivets are automatically inserted via a driven sorting drum on the left and right…
Machine type 060-16-600
Electric riveting machine with bottom punch movement for the automatic insertion of solid aluminum rivets into pre-punched material. The rivets are fed automatically via a driven sorting drum and inserted with a riveting tool.

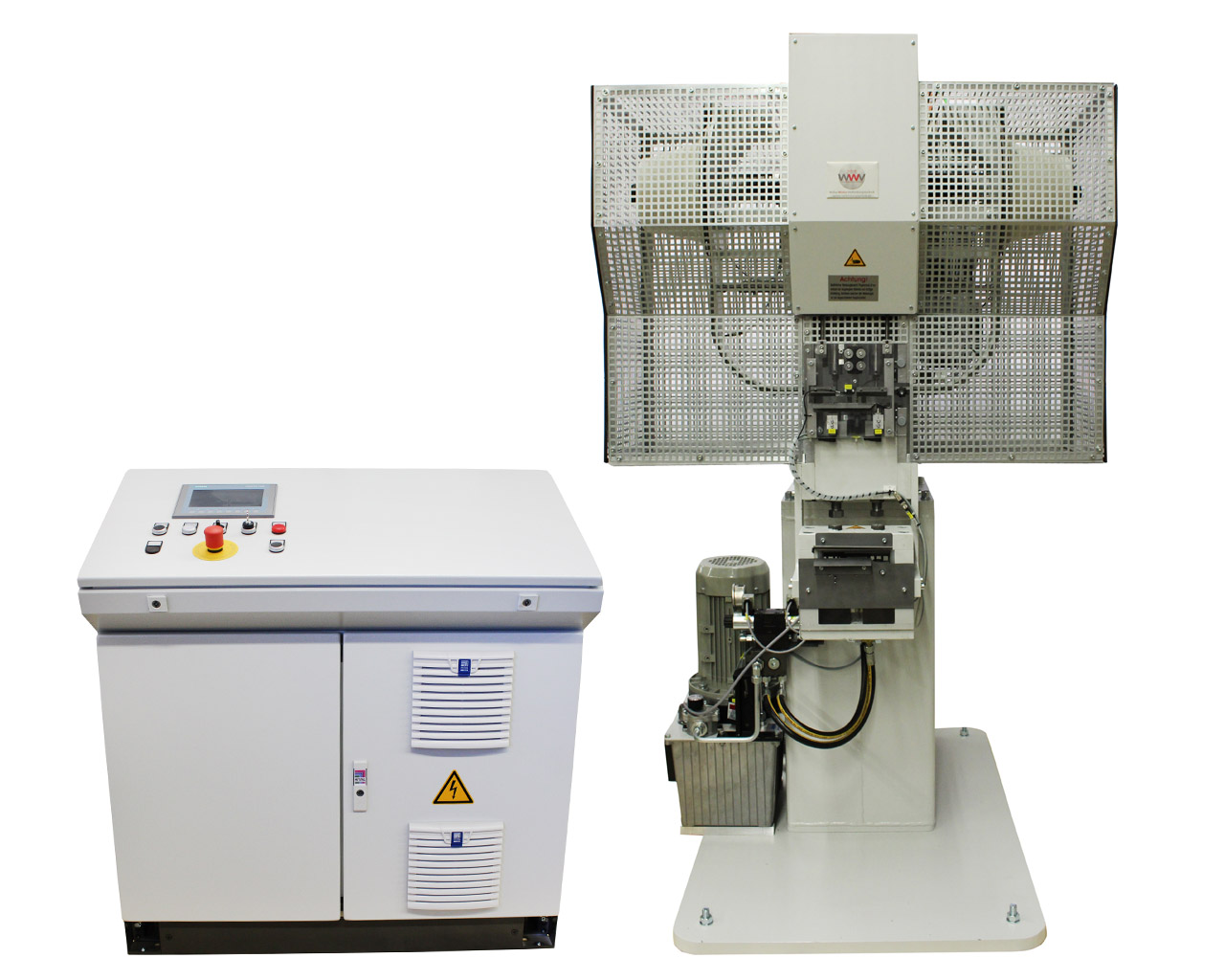

Machine type 035-02
