Machine type 035-02
Electric double eyelet machine for stainless steel eyelets (V2a)
Electric double eyelet machine for stainless steel eyelets (V2a) in extra heavy-duty design with fixed hole spacing and hydraulic re-pressing unit for automatic insertion of eyelets into pre-punched material. The eyelets are automatically fed in and pressed in via a driven sorting drum on the left and right. Both eyelets are set simultaneously. The pressure setting of the eyelets is adjusted via an adjustment screw on the lower tool. Electronic eyelet detection for level control in the feed rail and monitoring of the sorting drums. With protective housing, electric limit switch, and piece counter.
Technical specifications
- Control panel with PLC control and operating panel
- Component monitoring for already assembled workpieces
- Sorting drum drive: Electric with minimum and maximum control
- Performance: 60 cycles/minute
- Drive: Geared brake motor
- Sorting drive: Small gear motor
- Working height: approx. 1200 mm
- Weight: approx. 1000 kg
- Space requirement: 1300 x 2000 x 2100 mm
- Air pressure: approx. 6 bar
- Projection: 200 mm free overhang
- Hole spacing: Fixed
- Post-pressing unit: Hydraulic with power unit
Examples of use
- Automotive industry
- Automotive suppliers
- Automotive
- Mold making
- Plastics processing
Anwendungsvideos
Double eyelet machine type 035-02

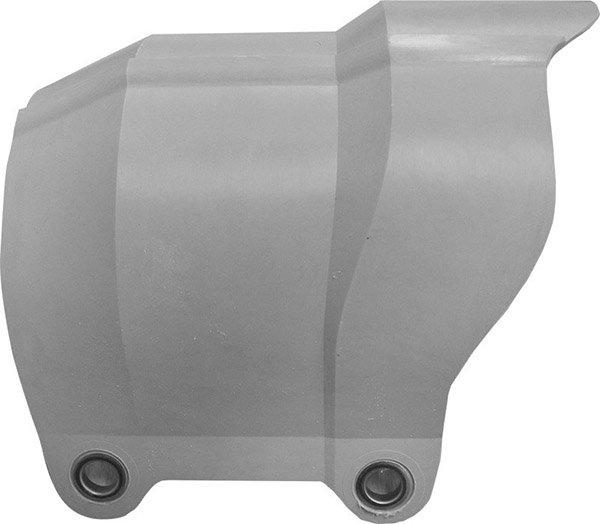

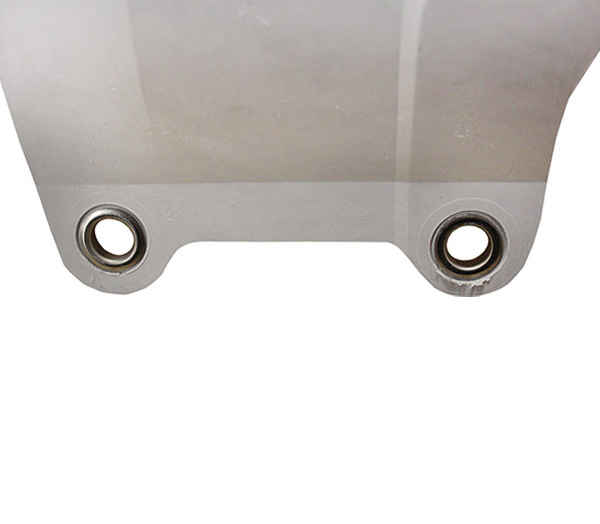

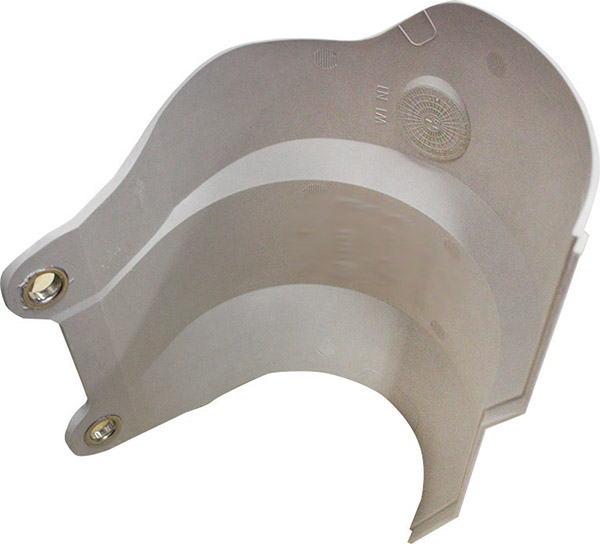

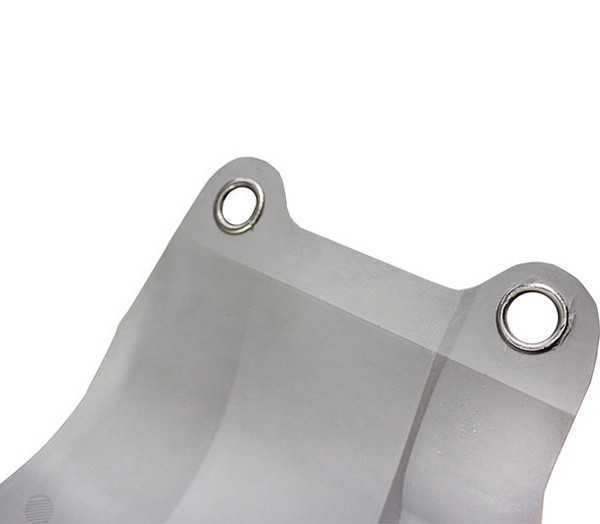

Sample images of heat shielding plate
