Machine type 090-01 (3)

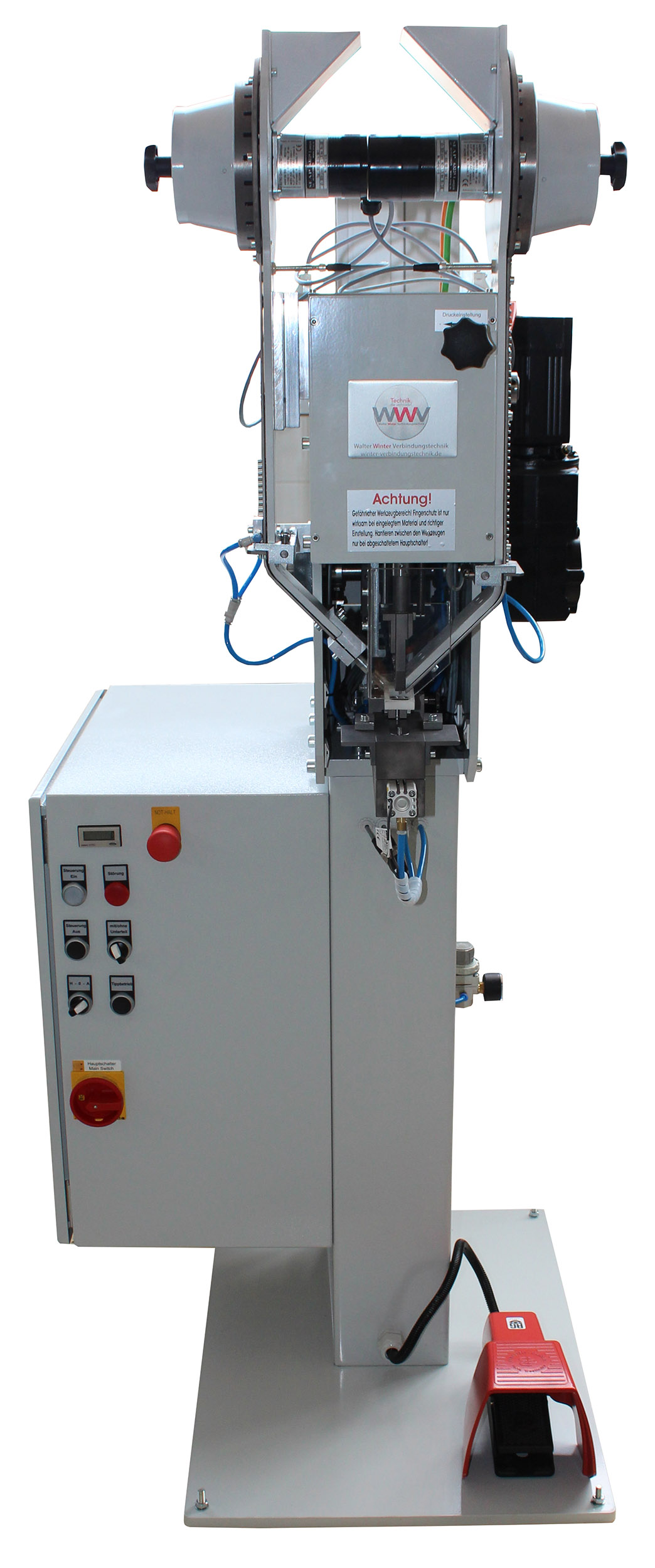

Electric riveting machine with bottom part feed and bottom punch movement
Electric riveting machine with bottom part feed and bottom punch movement for the automatic insertion of 2-part hollow rivets of various lengths into pre-punched material. The rivet bottoms are fed automatically and positioned and held in place by a steel strip pusher. The upper rivet parts are also fed automatically and inserted flush with the lower rivet parts into the pre-punched material. The pressure can be adjusted depending on the material thickness. Electronic rivet top and bottom part monitoring for checking the fill level in the feed rail. The lower rivet feed can be switched off. With leading finger protection device, electric foot switch and piece counter.
Technical specifications
- Switch cabinet with PLC control
- Sorting drum drive: Electric with minimum and maximum control
- Bottom part feed: Can be switched off pneumatically
- Output: 100 cycles/minute
- Drive: Servo motor
- Sorting drive: Small geared motor
- Working height: approx. 930 mm
- Weight: approx. 250 kg
- Space requirement: 800 x 1000 x 1750 mm
- Air pressure: approx. 6 bar
- Projection: 65 mm free cantilever
- Knife handle thickness: 10- 18 mm
Examples of use
- Cutlery industry
- Metal goods industry
- Metal processing
- Steel goods
- etc.

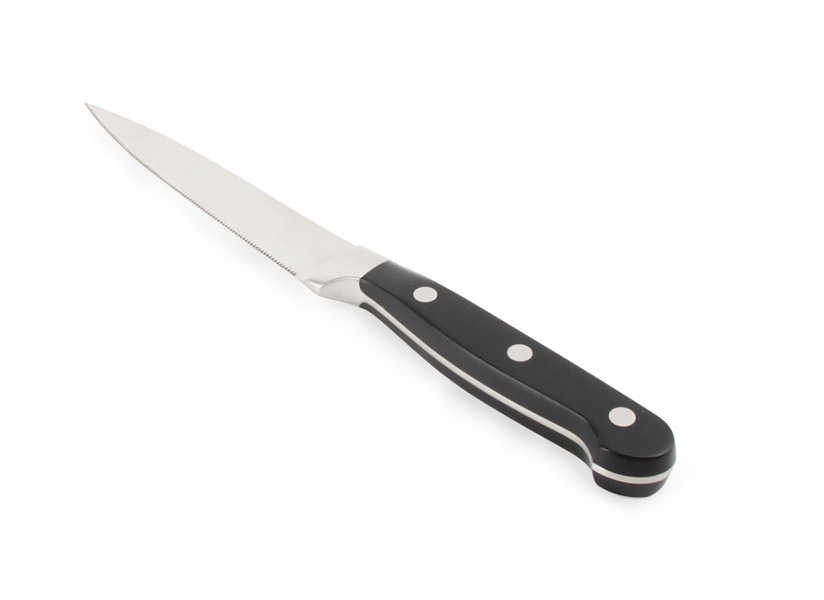

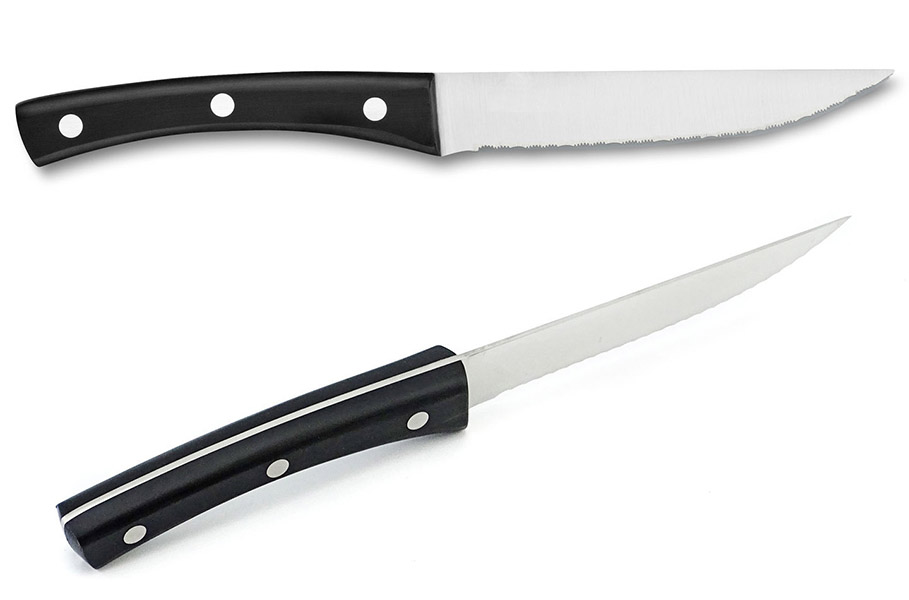

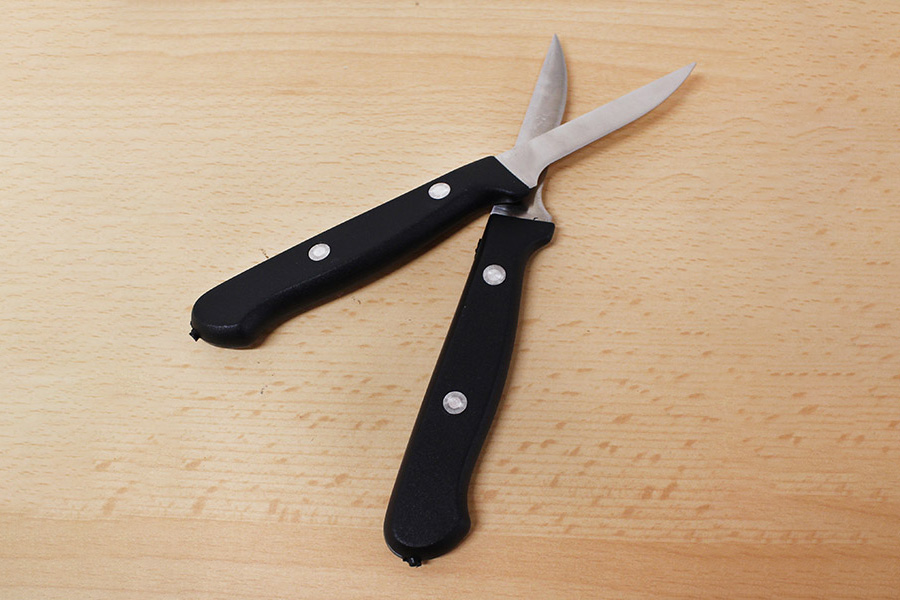

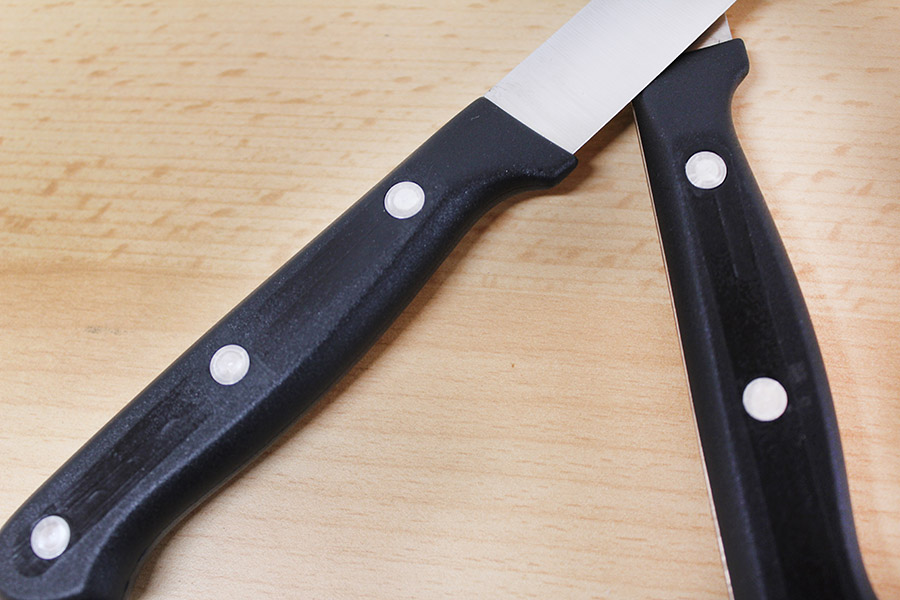

Sample images shoe pieces
