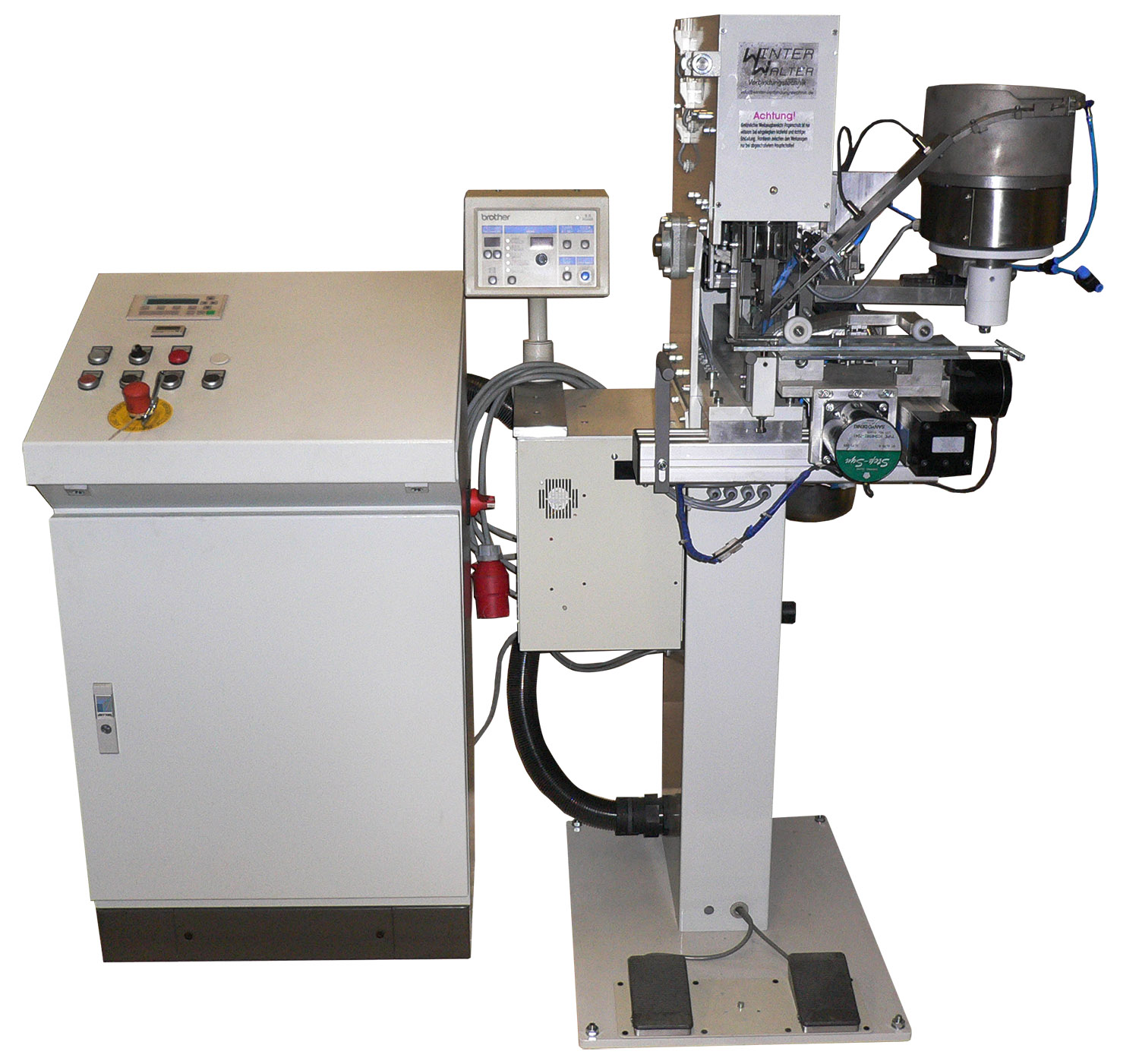

Machine type 065-20
Freely programmable automatic belt riveter
Freely programmable automatic belt riveter for the automatic insertion of self-piercing rivets. The rivets are automatically fed and pressed in via a vibration conveyor. Equipped with a quick-change device for the rivet feeders and tools. The pressure of the rivets is set via an adjusting screw on the lower tool. The X and Y axes can be programmed via a graphics program. The insertion device for the leather goods is always centered. With protective housing, electric foot switch and piece counter.
Technical specification
- Control panel with PLC control and operating panel
- Sorting drum drive: Electric with minimum & maximum control and rivet fall-through detection
- Output: 120 cycles/minute
- Drive: Gear brake motor
- Sorting drive: Vibratory conveyor
- Cycle feed: Stepper motors
- Insertion device: Belt width up to 60 mm
- Working height: approx. 1000 mm
- Weight: approx. 250 kg
- Space requirement: 1000 x 1800 x 1500 mm
- Air pressure: approx. 6 bar
- Projection: 200 mm free cantilever
- etc.
Examples of use
- Belt industry
- fashion accessories
- Dog collars
- Dog leashes
- etc.
