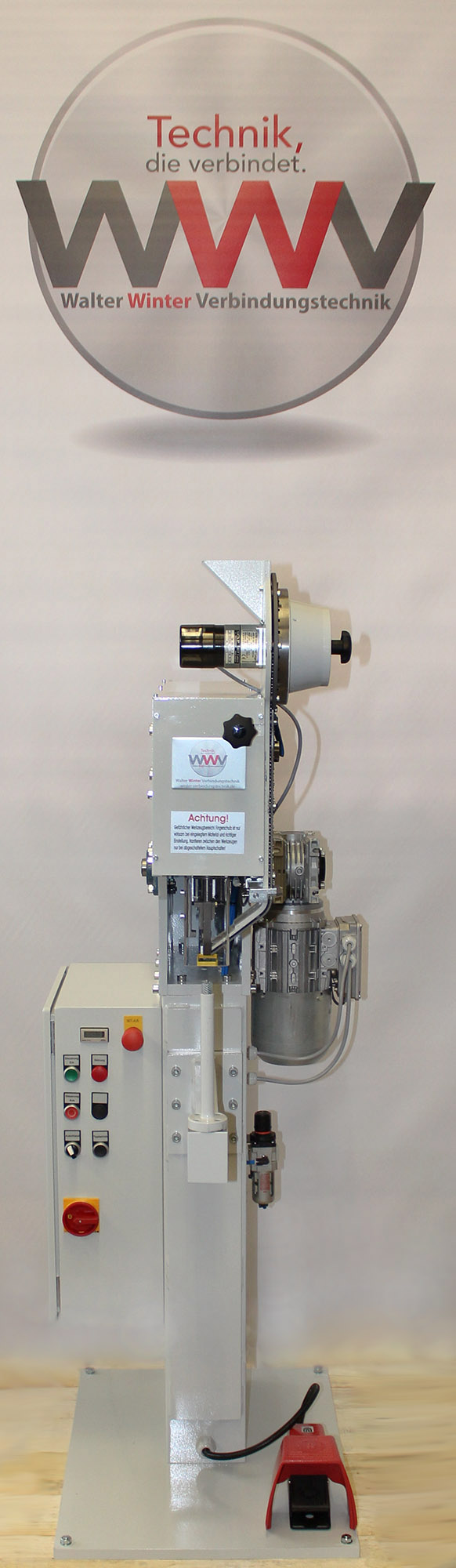

Machine type 060-16-420
Electric riveting machine with horn anvil
Electric riveting machine with horn anvil for automatic insertion of rivets into pre-punched material. The rivets are automatically fed and pressed in via a driven sorting drum. The pressure can be adjusted depending on the material thickness. With leading finger protection device, electric foot switch and piece counter.
Technical specifications
- Switch cabinet with PLC control
- Sorting drum drive: Electric with minimum and maximum control
- Output: 120 cycles/minute
- Drive: Gear brake motor
- Sorting drive: Small geared motor
- Working height: approx. 1000
- Weight: approx. 250 kg
- Space requirement: 800 x 600 x 1750 mm
- Air pressure: approx. 4-6 bar
- Projection: 400 mm freely cantilevered
Examples of use
- Sheet metal processing industry
- Automotive industry
- Shoe industry
- Luggage manufacturing
- etc.
