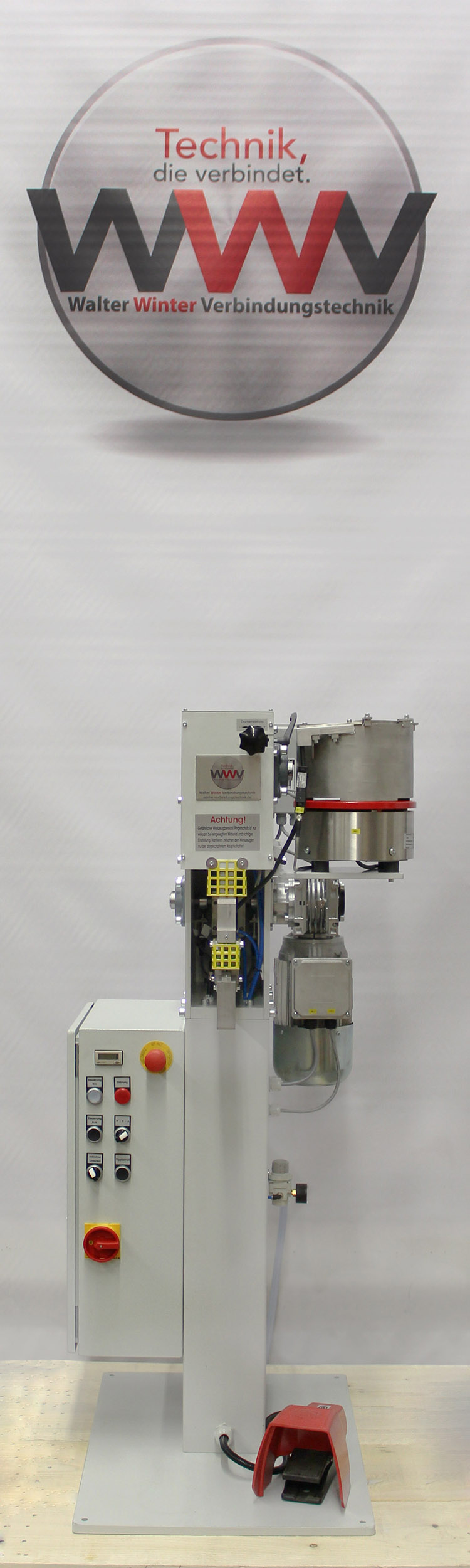

Machine type 060-16 (2)
Special electric riveting machine for rivet pins
Description of the machine
Special electric riveting machine for rivet pins for automatic insertion into pre-punched material. The rivet pins are automatically fed via a vibratory conveyor and positioned and held in place by a slide. The pressure can be adjusted depending on the material thickness. Electronic rivet pin detection for level control in the feed hose. With finger protection device, electric foot switch, and piece counter.
Technical specifications
- Control cabinet with PLC control
- Sorting drum drive: Electric with minimum and maximum control
- Lower part feed: Pneumatically switchable
- Performance: 60 cycles/minute
- Drive: Geared brake motor
- Sorting drive: Vibration conveyor
- Working height: approx. 1100
- Weight: approx. 200 kg
- Space requirement: 800 x 600 x 1750 mm
- Air pressure: approx. 6 bar
- Projection: 100 mm free overhang
Examples of use
- Metalworking
- Steel goods
- Helmet mounts
- Safety equipment
- Automotive industry
- Camping equipment
- etc.
Usage videos
Riveting machine type 060-16 (2)

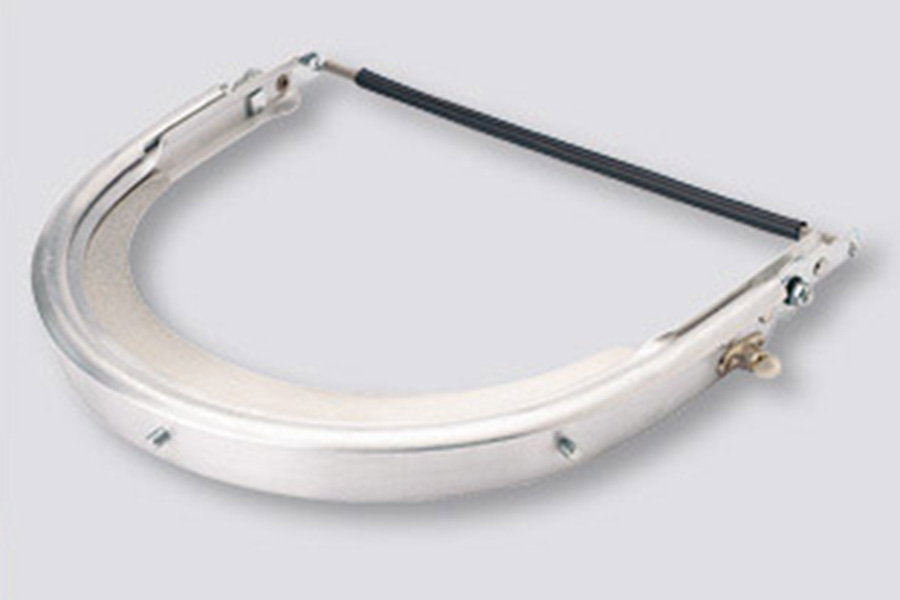

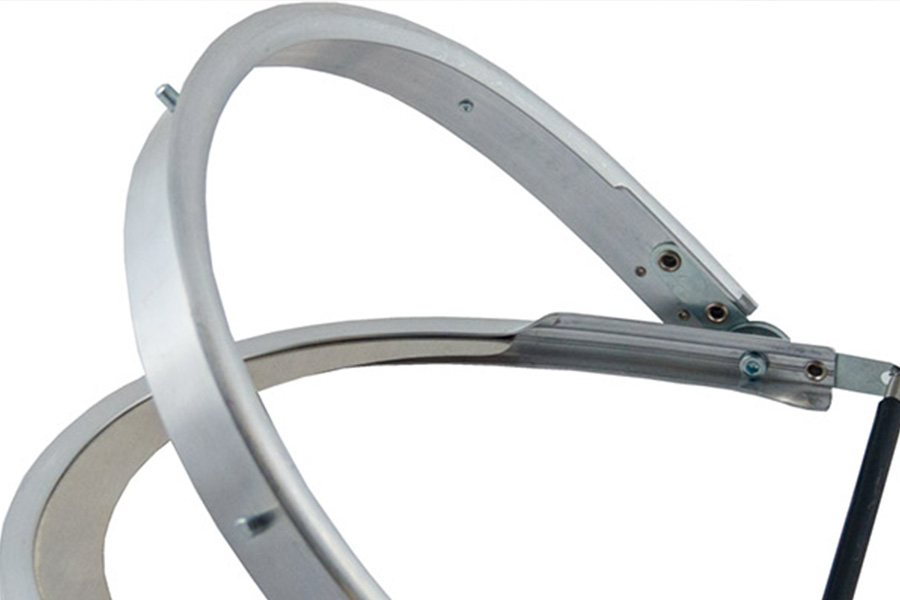

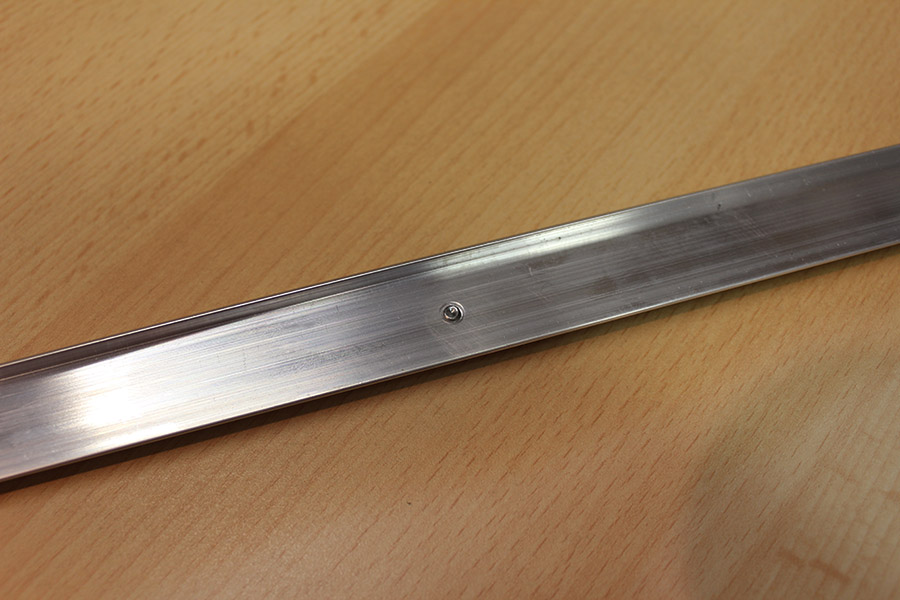

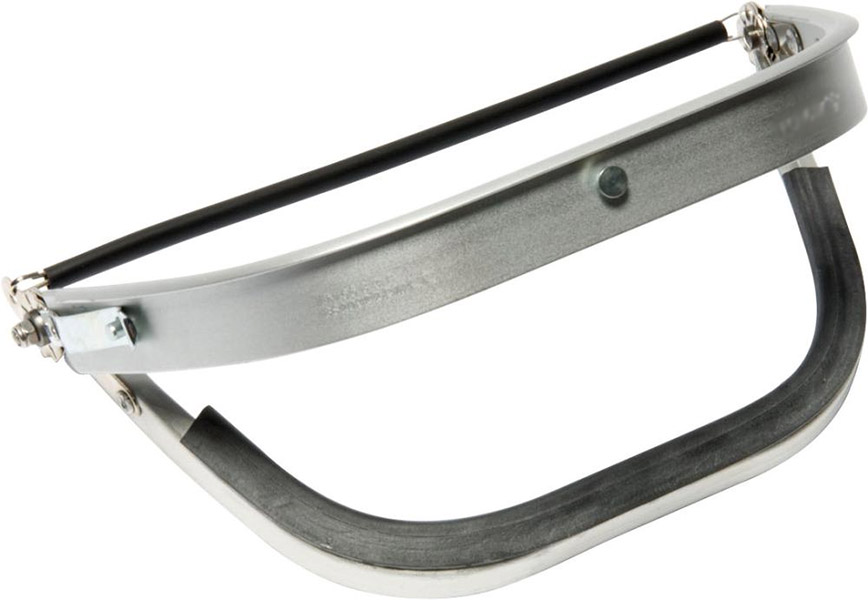

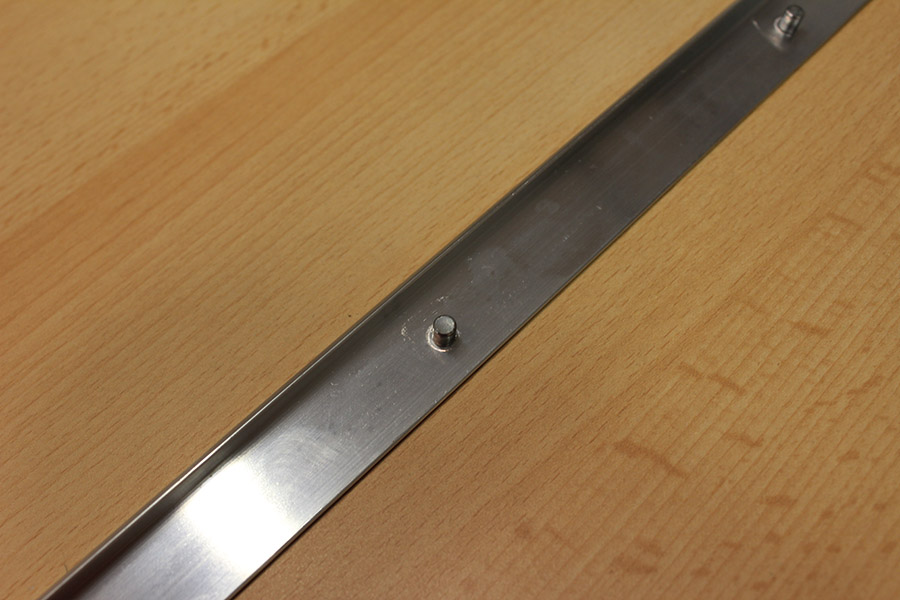

Sample images of helmet mounts
