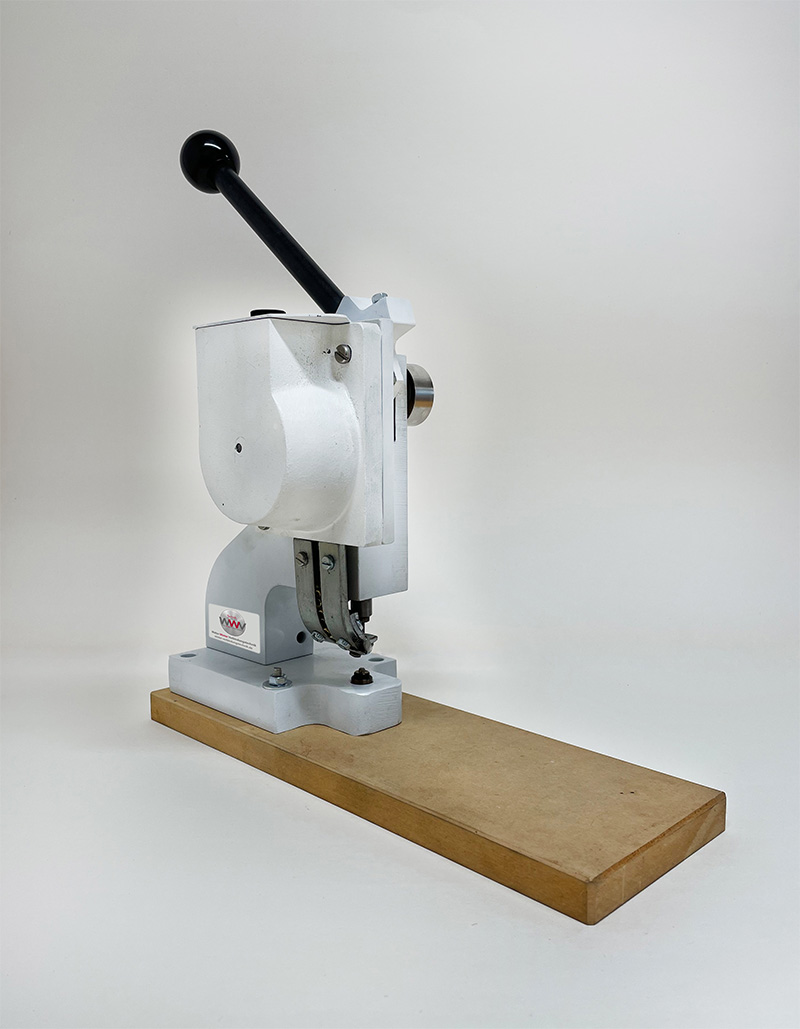

Machine type Mini 01-01
Manual eyeletting machine
The manual eyeletting machine manually punches and eyelets at the same time. The eyelets are fed automatically from the magazine. Suitable for eyelets with an inner diameter of 3.5 – 6.0 mm. The machine body is made of aluminum, making it very light. All moving parts are guided in self-lubricating bushes, therefore completely maintenance-free (no oil or grease stains on material). The pressure of the eyelets is adjusted via an adjusting screw on the lower tool. With adjustable back and side stops.
Technical specifications
- Weight: approx. 5 kg
- Space requirement: 250 x 100 x 370 mm
- Projection: 70 mm freely cantilevered
Examples of use
- Ösungen von Dokumenten
- Passport photos in ID cards
- Labels
- Documents and certificates as well as simple stitching work
- etc.

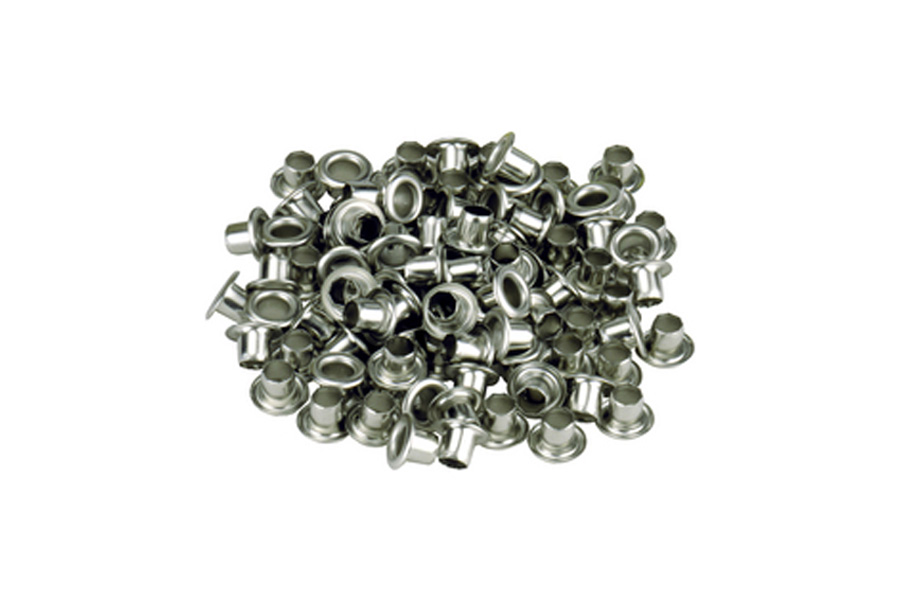

Sample images bookbinding supplies
