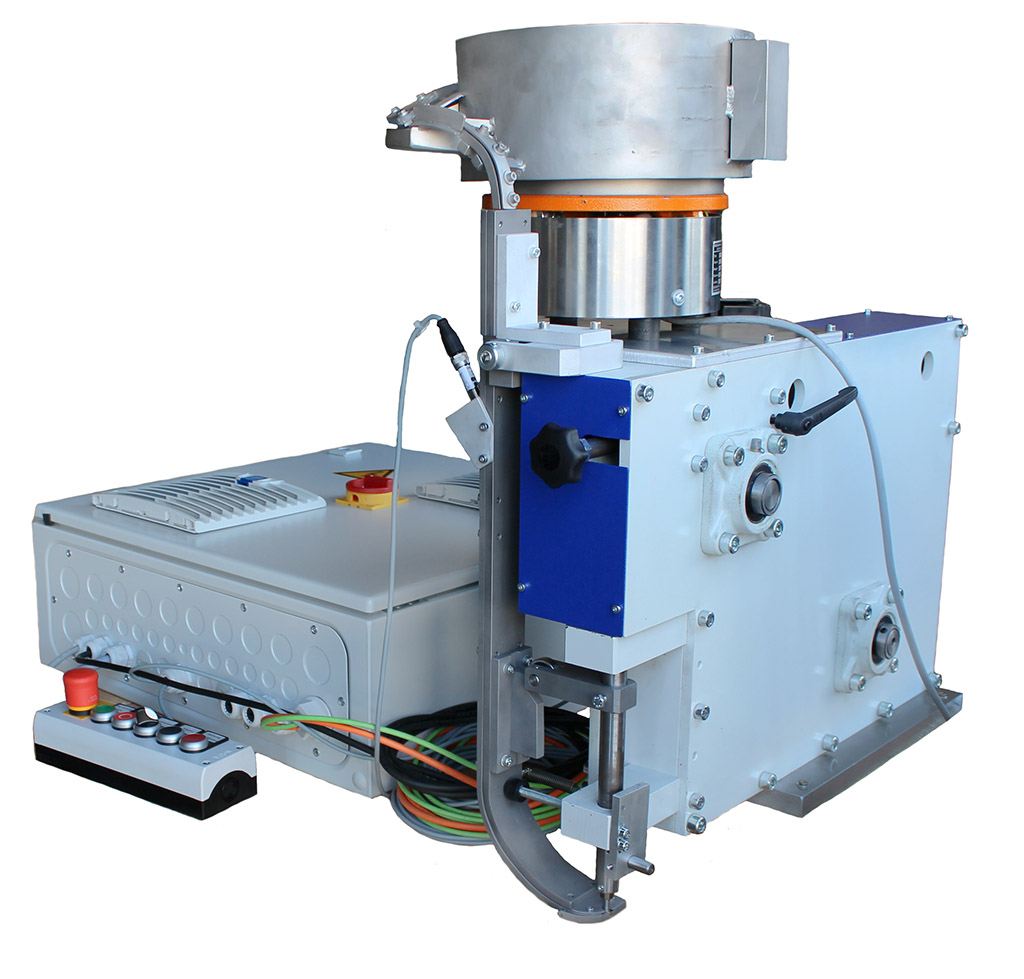

Machine type 033-50
Electric eyeletting machine in special design
Electric eyeletting machine in special design with quick pressure adjustment. Mounted on a plate. For automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a vibration conveyor. The eyeletting machine is installed in an industrial line.
Technical specifications
- Switch cabinet with PLC control
- Sorting drum drive: Electric with minimum and maximum control
- Output: 120 cycles/minute
- Drive: Servo motor
- Sorting drive: Vibratory conveyor
- Weight: approx. 85 kg
- Space requirement: 350 x 950 x 750 mm
- Projection: 80 mm freely cantilevered
Examples of use
- Textile industry
- Electronics industry
- Office supplies
- Shoe industry
- Leather goods industry
- Tarpaulin and tent industry
- etc.
Usage videos
eyeletting machine type 033-50 in special design

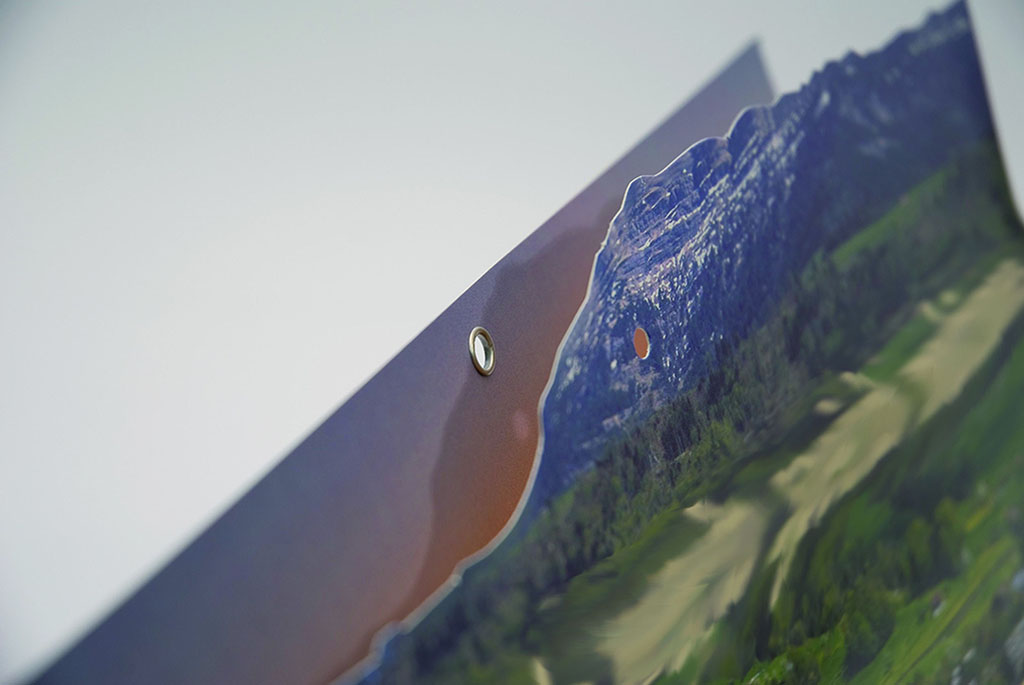

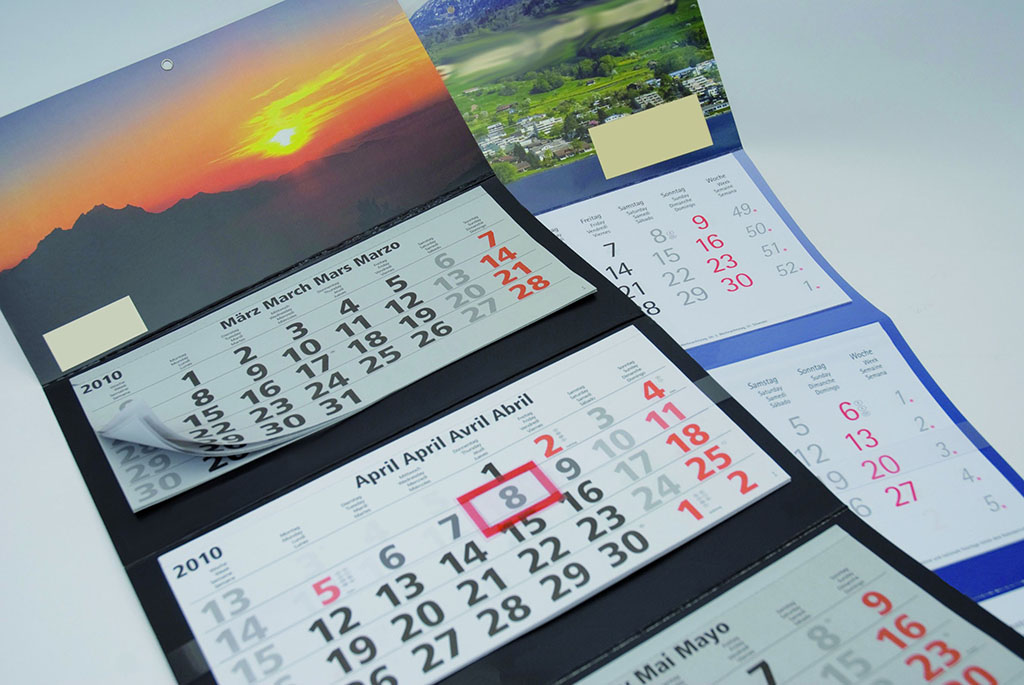

Sample images bookbinding supplies
