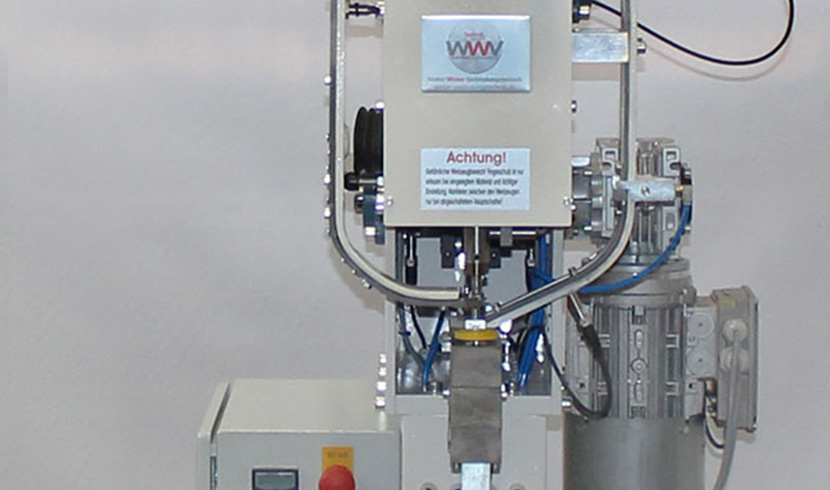

Machine type 033-20
Electric eyeletting machine with disk feed for pre-punched material
Electric eyeletting machine with washer feed for pre-punched material for the automatic insertion of eyelets and washers into fabric binders or fabric. The washers are fed automatically and positioned by a steel strip pusher. The eyelets are also fed automatically and inserted into the pre-punched material together with the washers. The pressure can be adjusted depending on the material thickness. Electronic eyelet and disk monitoring to check the fill level in the feed rail. Pane feed can be switched off. With leading finger protection device, electric foot switch and piece counter.
Technical specifications
- Weight: approx. 30 kg
- Space requirement: 650 x 610 x
- Sorting drum drive: Electric with minimum and maximum control
- Bottom part feed: Can be switched off pneumatically
- Output: 80 cycles/minute
- Drive: Gear brake motor
- Sorting drive: Small gear motor
- Working height: approx. 1000 m
- Weight: approx. 250 kg
- Space requirement: 850 x 600 x 1750 mm
- Air pressure: approx. 6 bar
- Projection: 120 mm Free cantilevering
Examples of use
- Paper and printing industry
- Textile industry
- Protective equipment
- Shoe industry
- Clothing industry
- Leather goods industry
- Tarpaulin and tent industry
- etc.
More eyeletting machines

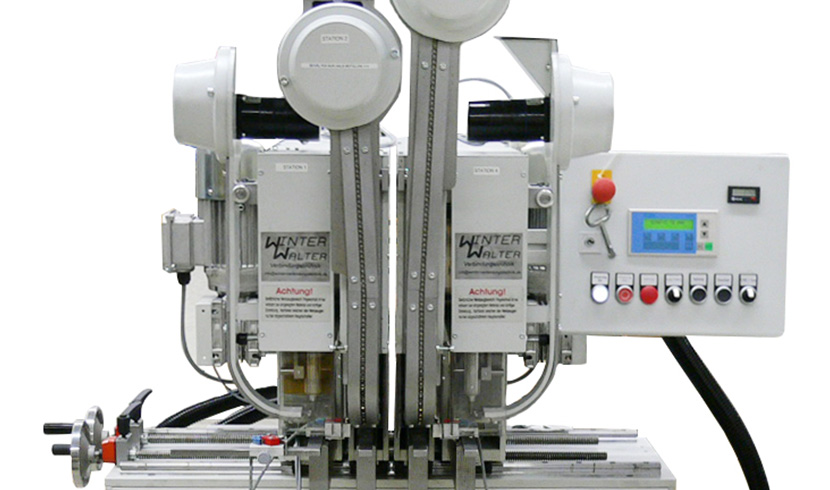

Machine type 035-40-300
Electric 4-fold eyeletting machine for the automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum on the left, right and front. The insertion of all…
Machine type 035-02
Electric 2-fold eyeletting machine for the automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum on the left and right. The setting of both…

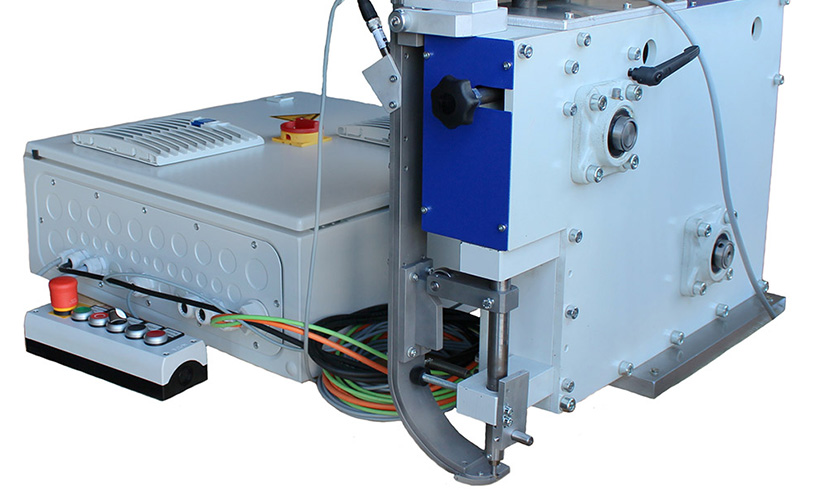

Machine type 033-50
Electric oiling machine in special design with quick pressure adjustment. Mounted on a plate. For automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a vibration conveyor.

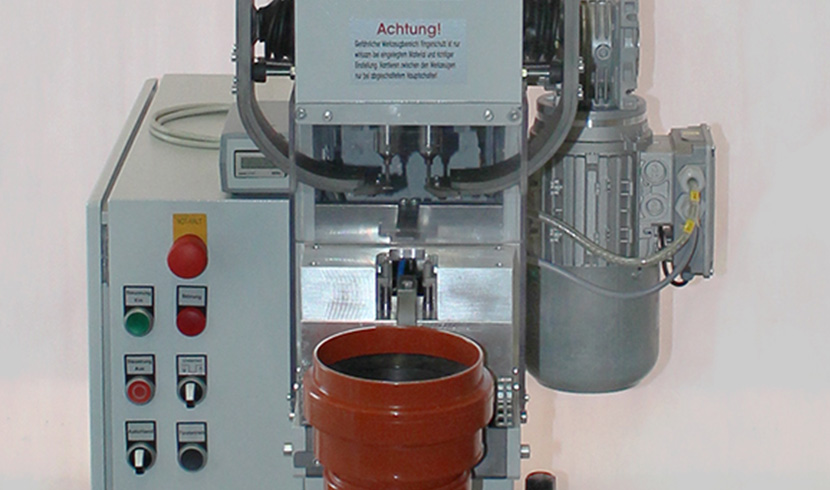

Machine type 033-30D
Electric double eyeletting machine for pre-punched material and sliding block for automatic insertion of eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum on the left and right.
Machine type 033-20
Electric eyeletting machine with washer feed for pre-punched material for the automatic insertion of eyelets and washers into fabric binders or fabric. The washers are fed automatically and positioned by a steel strip pusher.

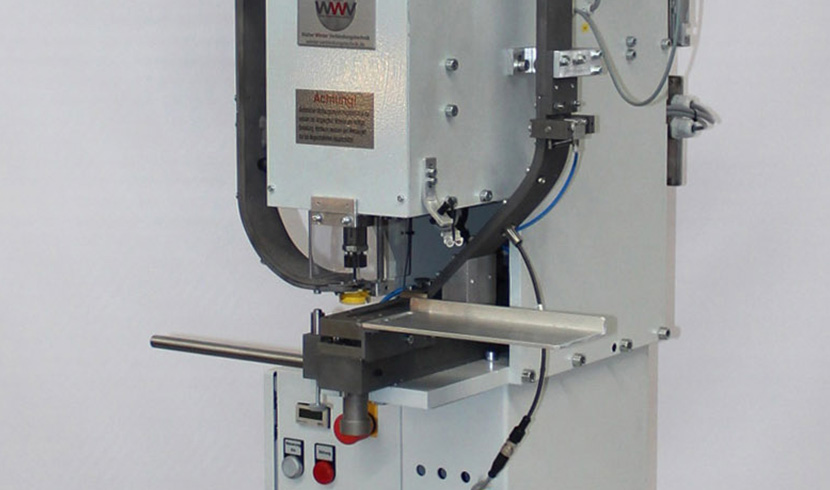

Machine type 033-10 (2)
