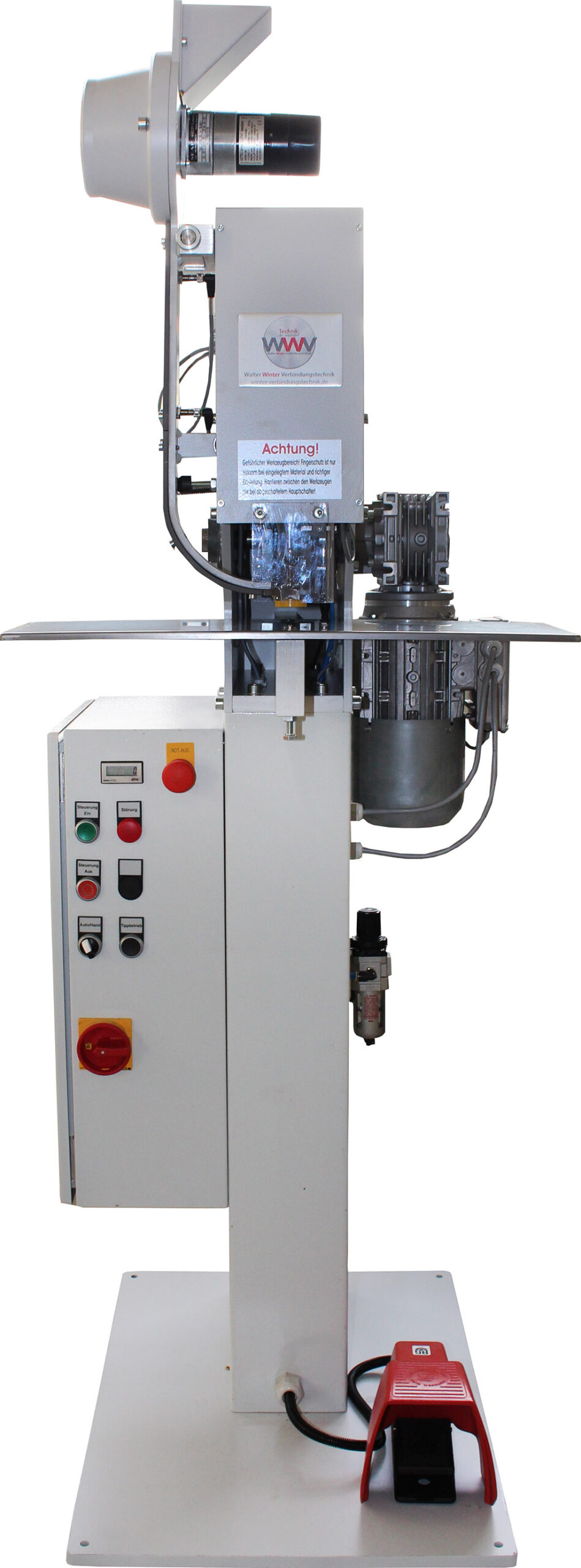

Machine type 033-01
Electric eyeletting machine
Electric eyeletting machine for the automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum. The pressure of the eyelets is adjusted via an adjusting screw on the lower tool. With leading finger protection device and electric foot switch.
Technical specifications
- Switch cabinet with PLC control
- Sorting drum drive: Electric with minimum and maximum control
- Output: 120 cycles/minute
- Drive: Gear brake motor
- Sorting drive: Small geared motor
- Working height: approx. 1000 mm
- Weight: approx. 200 kg
- Space requirement: 800 x 600 x 1750 mm
- Air pressure: approx. 4-6 bar
- Projection: 200 mm freely cantilevered
Examples of use
- Paper and printing industry
- Textile industry
- Electrical industry
- Office supplies
- Shoe industry
- Leather goods industry
- Tarpaulin and tent industry
- etc.
Usage videos
eyeletting machine type 033-01

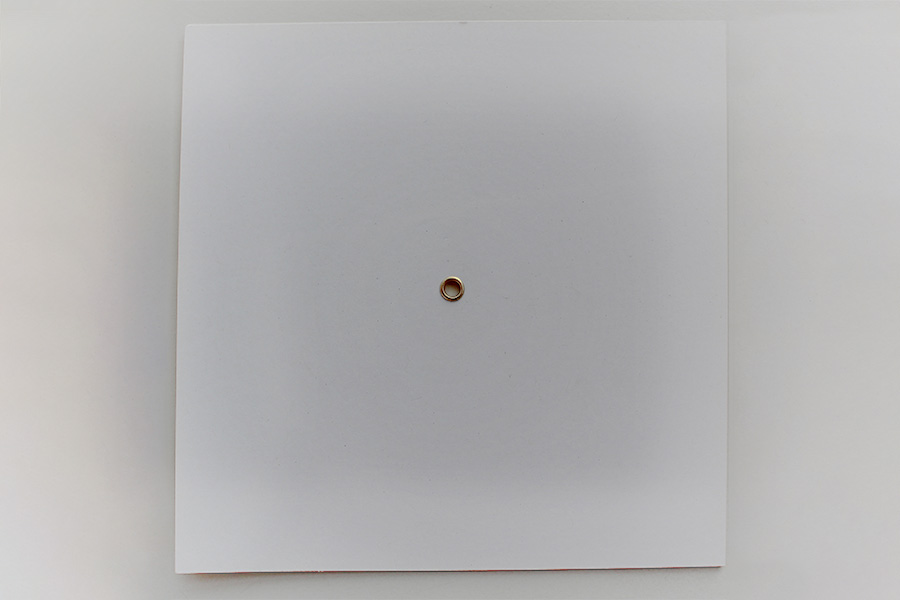

Sample images bookbinding supplies
