Machine type 032-01
Pneumatic eyeletting machine
Pneumatic eyeletting machine with quick pressure adjustment. Mounted on a plate with linear guides + linear carriage and adjustable via spindle. For automatic insertion of self-piercing eyelets. The eyelets are automatically fed and pressed in via a driven sorting drum. The eyeletting machine is installed in an industrial line.
Technical specifications
- Sorting drum drive: Electric
- Output: 50 cycles/minute
- Drive: Compact cylinder
- Travel: Stepless 0 – 600 mm via digital position indicator
- Weight: approx. 80 kg
- Space requirement: 350 x 950 x 750 mm
- Air pressure: approx. 6 bar
- Projection: 150 mm freely cantilevered
Examples of use
- Textile industry
- Electrical industry
- Office supplies
- Shoe industry
- Leather goods industry
- Tarpaulin and tent industry
- etc.
Usage videos
Eyeletting machine type 032-01

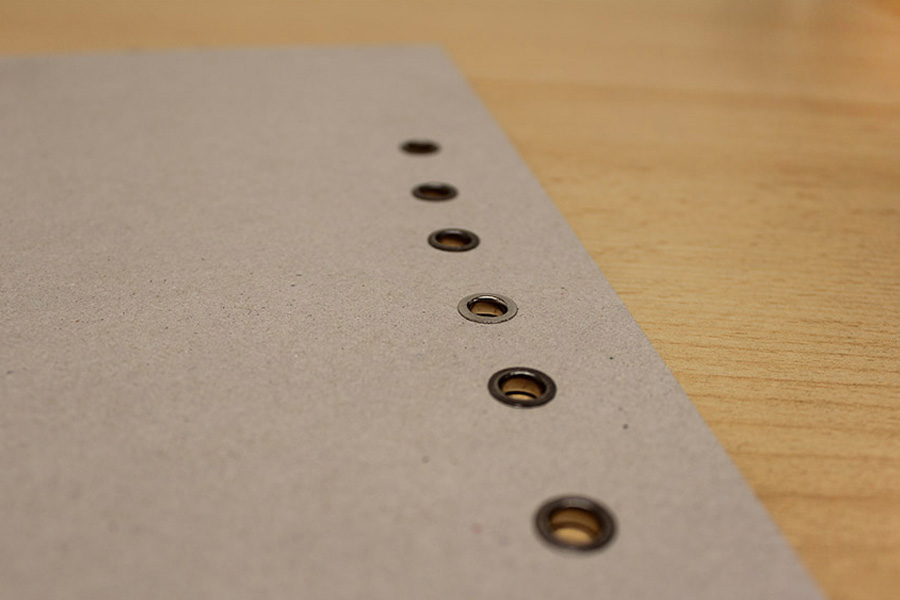

Sample images bookbinding supplies
