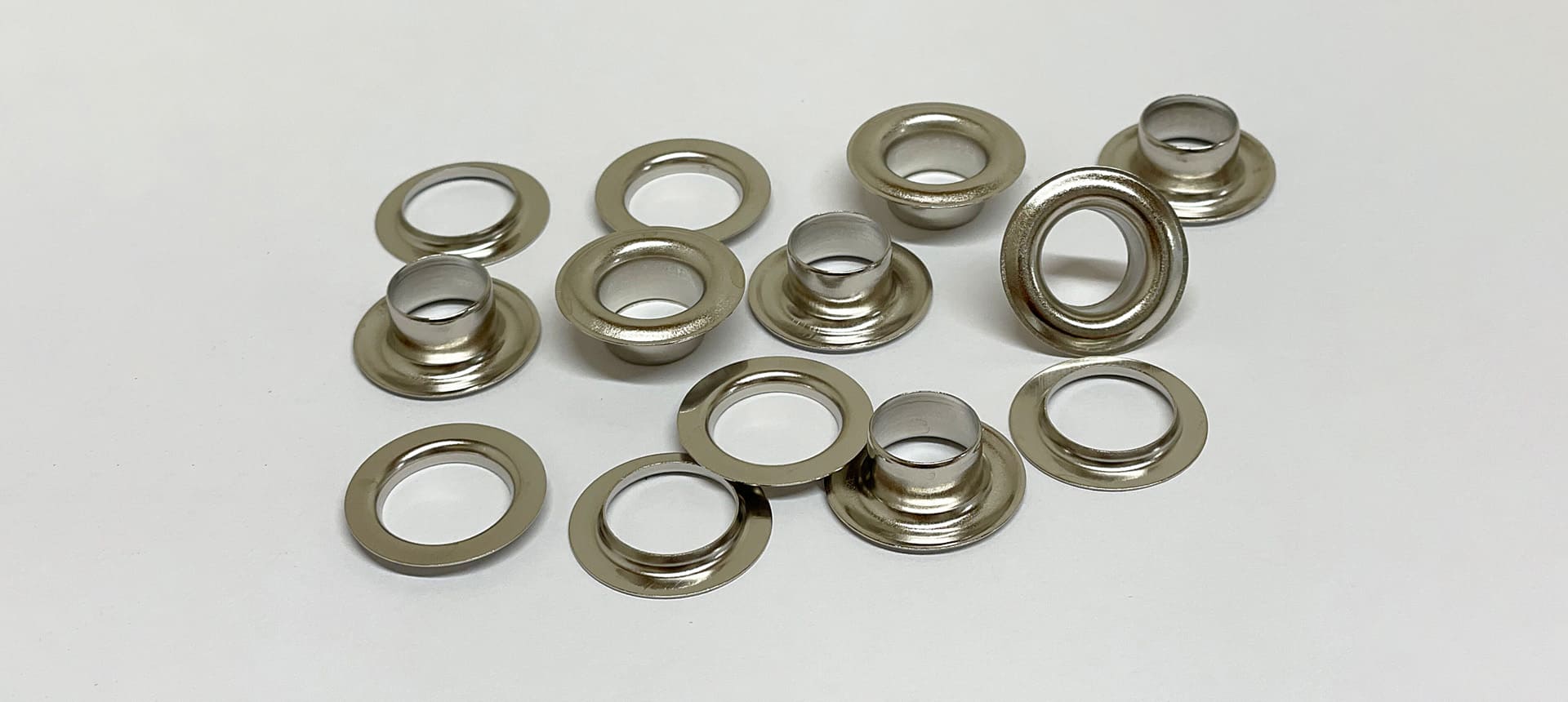

Eyelets: reinforcement and functionality for a wide range of applications
Eyelets, typically round or oval metal rings, are extremely versatile elements with a wide range of applications. One of their main uses is to reinforce holes in materials such as paper, tarpaulins, leather and textiles. The integration of an eyelet prevents the material from fraying or tearing under load, creating a robust passage for ropes, cords and ribbons. The washers attached to the back also contribute to stability and increase the tear resistance of the pressed eyelet.
Our range of eyelets offers the highest quality for a wide variety of applications – take a look at our range. Our eyelets are suitable for self-piercing use in paper and cardboard.
Our overview of eyelets
All eyelets are available in various materials, e.g. steel, brass, aluminum, stainless steel, plastic and colors.
Eyelets
Eyelets with washers or counter eyelets
Rado eyelets or locking eyelets
Handle hole eyelets
Below you will find a small selection of our range of eyelets.

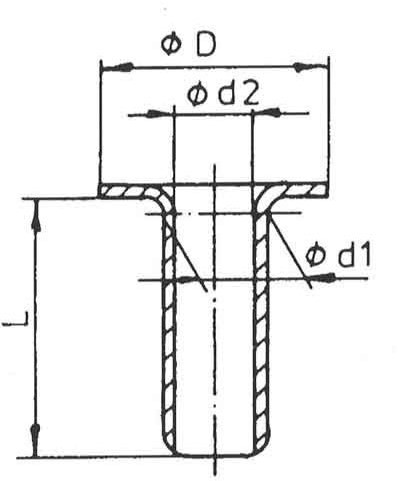

Specifications
Articles
⌀D
⌀d1
L
⌀d2
Eyelets 3E
5,0 mm
3,0 mm
3,5 mm
2,5 mm
Eyelets 4E
4,9 mm
3,7 mm
2,7 mm
3,0 mm
Eyelets 5E
5,9 mm
4,1 mm
3,1 mm
3,5 mm
Eyelets 24
6,7 mm
4,6 mm
2,9 mm
4,0 mm
Eyelets 25
6,6 mm
4,7 mm
3,8 mm
4,0 mm
Eyelets 25,5
6,6 mm
5,2 mm
4,8 mm
4,0 mm
Eyelets 26
6,6 mm
4,8 mm
5,7 mm
4,0 mm
Eyelets 8E short
8,0 mm
6,0 mm
2,4 mm
5,5 mm
Eyelets 8E
8,0 mm
6,2 mm
3,0 mm
5,5 mm
Eyelets 8E 4 long
8,0 mm
6,2 mm
4,0 mm
5,5 mm
Eyelets 8E 5 long
8,0 mm
6,2 mm
5,0 mm
5,5 mm
Eyelets 9E
11,0 mm
8,3 mm
3,8 mm
7,6 mm
Eyelets 269
10,0 mm
5,7 mm
5,0 mm
5,0 mm
Eyelets 270
10,0 mm
5,8 mm
6,9 mm
5,0 mm
Eyelets 271
10,0 mm
6,7 mm
7,2 mm
6,0 mm
Eyelets 272
10,0 mm
6,7 mm
4,9 mm
6,0 mm
Eyelets 273
10,0 mm
6,9 mm
10,0 mm
6,0 mm
Eyelets 1054
7,5 mm
4,5 mm
3,4 mm
3,9 mm
Eyelets 1351
9,8 mm
5,6 mm
4,6 mm
4,9 mm
Do you have any questions or are you looking for the perfect machine for your requirements? Let’s create the optimal connection together – we look forward to your message or call!
